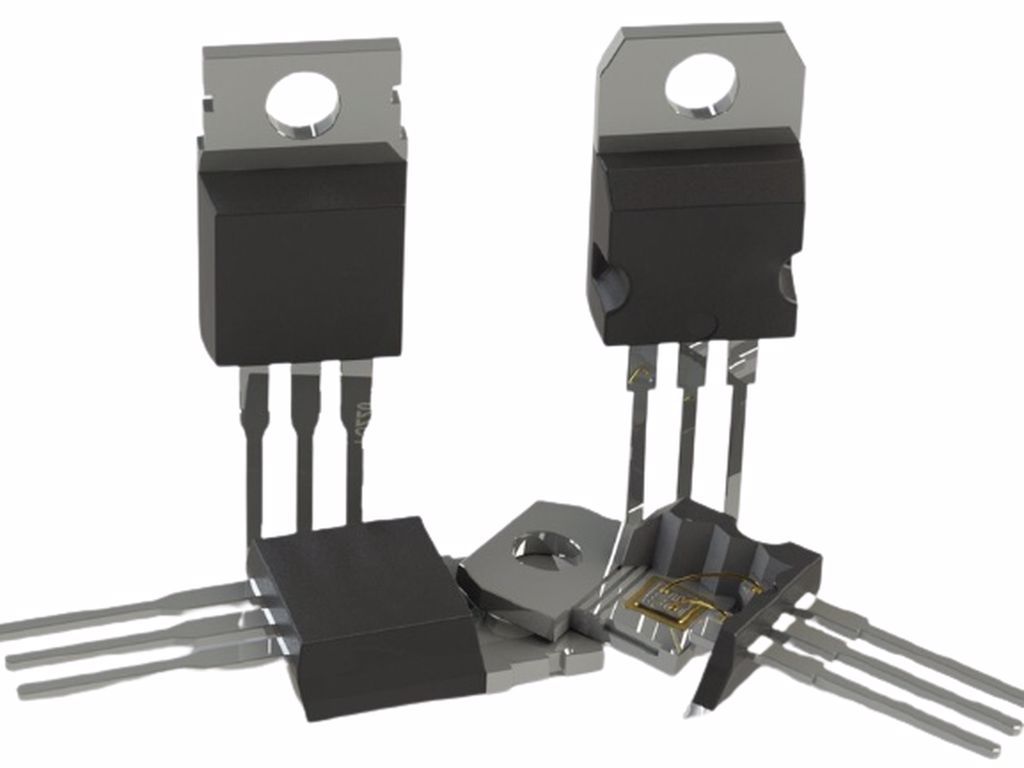

FTP08N06A TO-220 55V 120A N-CHANNEL MOSFET TRANSISTOR
FTP08N06A
Type Designator: FTP08N06A
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 55 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 120 A
Maximum Junction Temperature (Tj): 175 °C
Rise Time (tr): 58 nS
Drain-Source Capacitance (Cd): 985 pF
Maximum Drain-Source On-State Resistance (Rds): 0.008 Ohm
Package: TO220
Ürün Bilgisi
FTP08N06A
Type Designator: FTP08N06A
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 55 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 120 A
Maximum Junction Temperature (Tj): 175 °C
Rise Time (tr): 58 nS
Drain-Source Capacitance (Cd): 985 pF
Maximum Drain-Source On-State Resistance (Rds): 0.008 Ohm
Package: TO220
