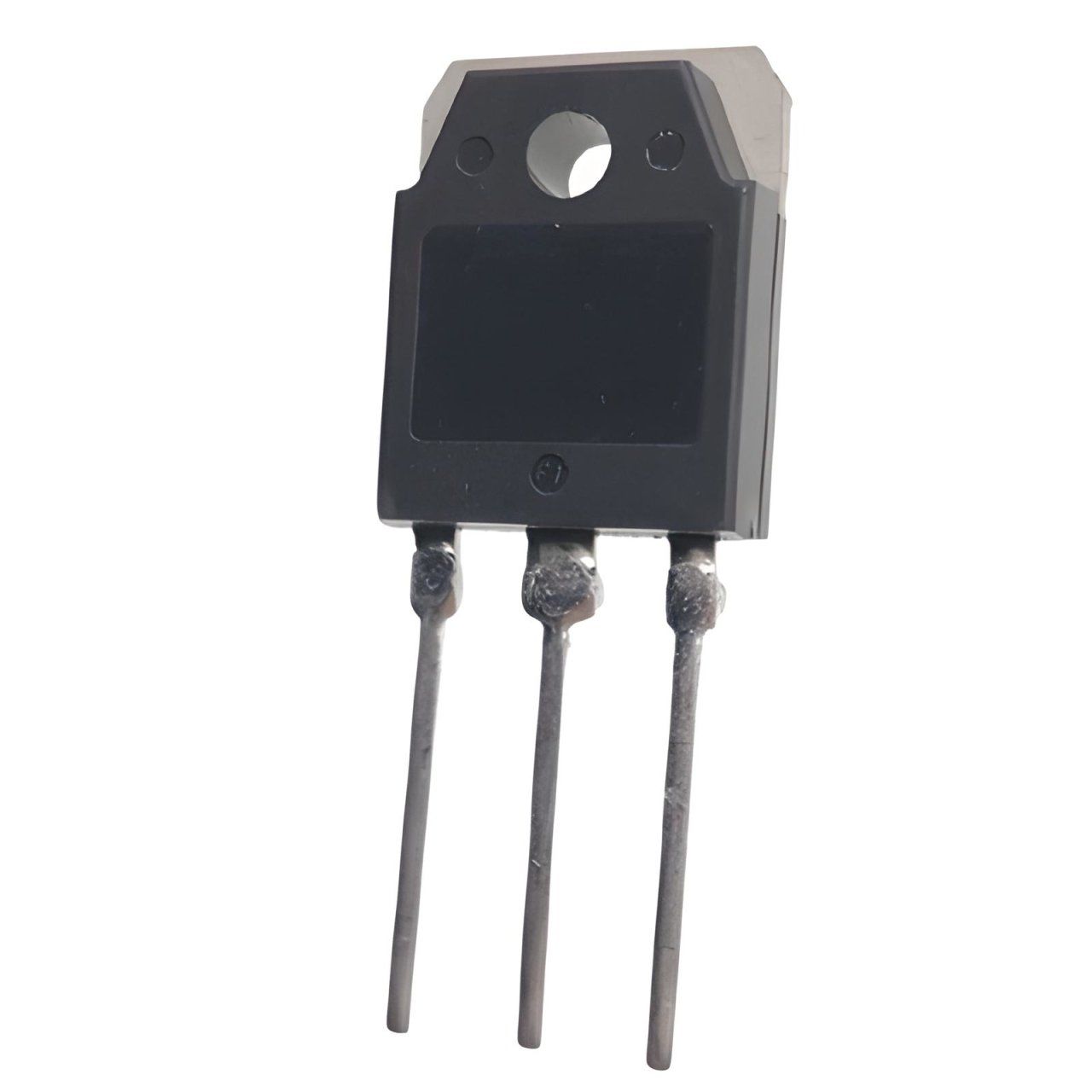

GT50N322A TO-3P 50A 1000V 156W IGBT TRANSISTOR
₺394,66 + KDV
13 Adet Stokta var, şimdi sipariş ver hemen kargoda
GT50N322A TO-3P 50A 1000V 156W IGBT TRANSISTOR
GT50N322A IGBT
Type Designator: GT50N322A
Type: IGBT
Marking Code: 50N322A
Type of IGBT Channel: N-Channel
Maximum Power Dissipation (Pc), W: 156
Maximum Collector-Emitter Voltage |Vce|, V: 1000
Maximum Gate-Emitter Voltage |Vge|, V: 25
Maximum Collector Current |Ic| @25℃, A: 50
Collector-Emitter saturation Voltage |VCE(sat)|, typ, V: 2.2
Maximum Junction Temperature (Tj), ℃: 150
Package: 2-16C1C
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
GT50N322A TO-3P 50A 1000V 156W IGBT TRANSISTOR
GT50N322A IGBT
Type Designator: GT50N322A
Type: IGBT
Marking Code: 50N322A
Type of IGBT Channel: N-Channel
Maximum Power Dissipation (Pc), W: 156
Maximum Collector-Emitter Voltage |Vce|, V: 1000
Maximum Gate-Emitter Voltage |Vge|, V: 25
Maximum Collector Current |Ic| @25℃, A: 50
Collector-Emitter saturation Voltage |VCE(sat)|, typ, V: 2.2
Maximum Junction Temperature (Tj), ℃: 150
Package: 2-16C1C
