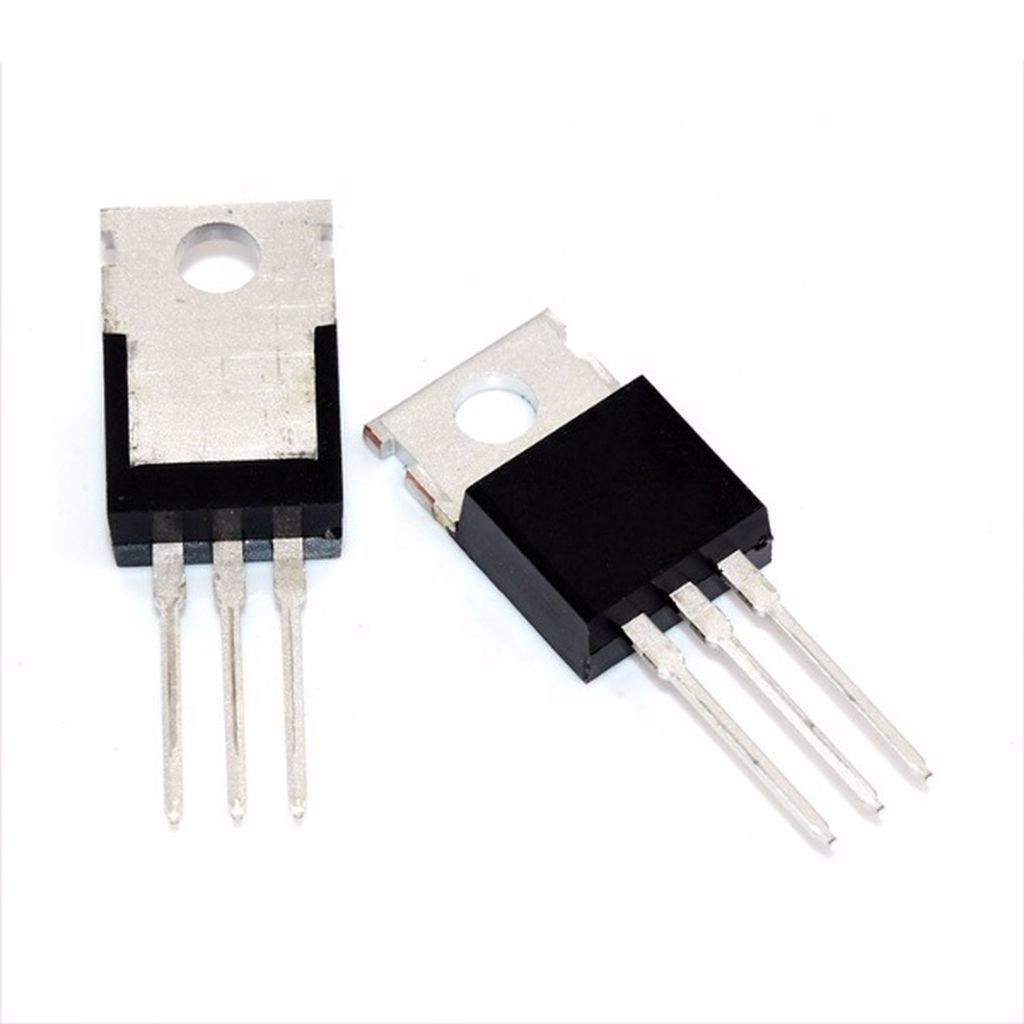

HY3306P TO-220 60V 130A N-CHANNEL MOSFET TRANSISTOR
HY3306P
Type Designator: HY3306P
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 130 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 67 nC
Rise Time (tr): 18 nS
Drain-Source Capacitance (Cd): 621 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0068 Ohm
Package: TO220
Ürün Bilgisi
HY3306P
Type Designator: HY3306P
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 130 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 67 nC
Rise Time (tr): 18 nS
Drain-Source Capacitance (Cd): 621 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0068 Ohm
Package: TO220
