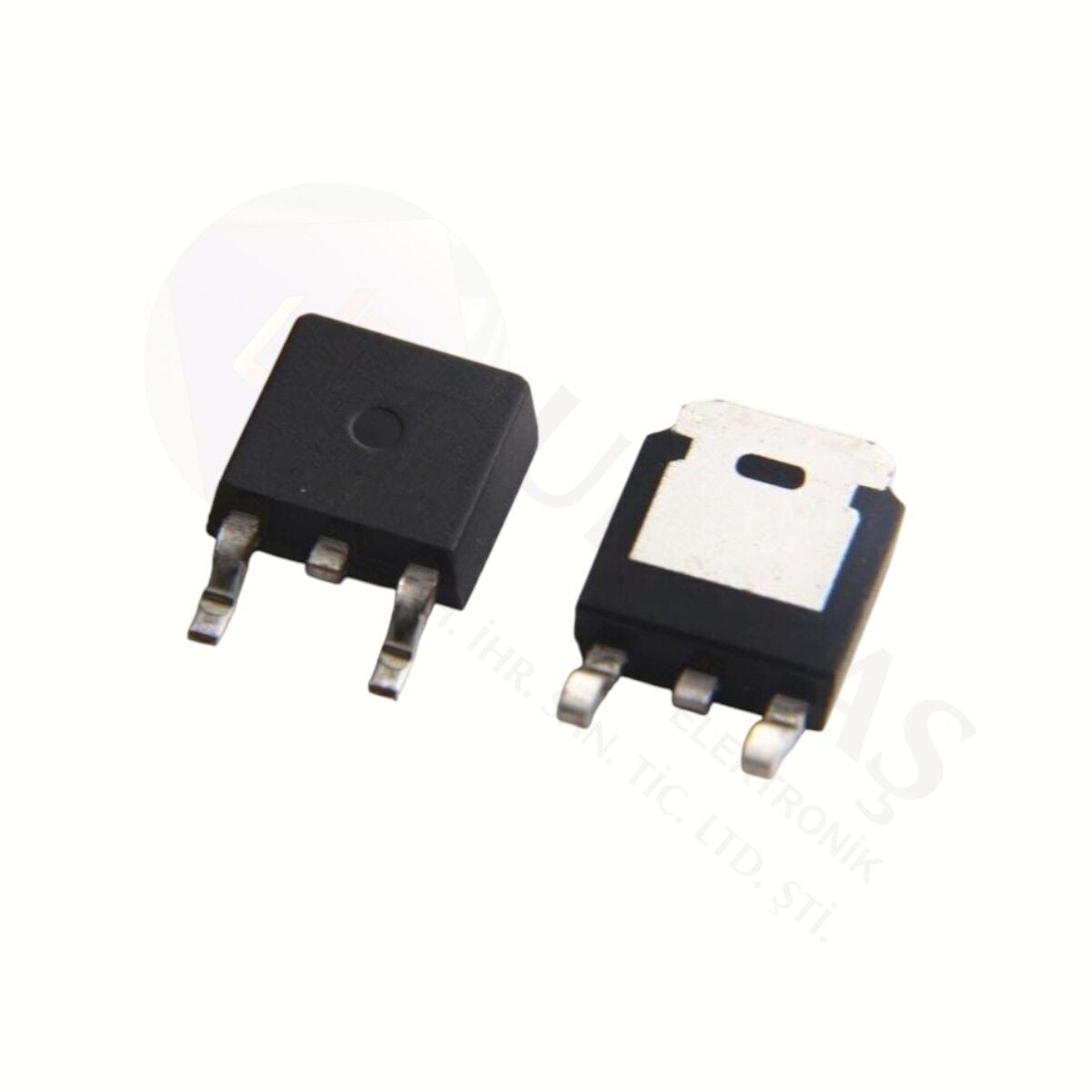

IPD068N10N3G TO-252 90A-100V 150W 0,0068 OHM N-Channel Mosfet
₺191,47 + KDV
100 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR007122
Fiyat
191,47 TL + KDV
*21,36 TL den başlayan taksitlerle!
IPD068N10N3G TO-252 90A-100V 150W 0,0068 OHM N-Channel Mosfet
Marking Code: 068N10N
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 150 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 90 A
Tj ⓘ - Maximum Junction Temperature: 175 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 3.5 V
Qg ⓘ - Total Gate Charge: 51 nC
tr ⓘ - Rise Time: 37 nS
Cossⓘ - Output Capacitance: 646 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0068 Ohm
Package: TO252
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
IPD068N10N3G TO-252 90A-100V 150W 0,0068 OHM N-Channel Mosfet
Marking Code: 068N10N
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 150 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 90 A
Tj ⓘ - Maximum Junction Temperature: 175 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 3.5 V
Qg ⓘ - Total Gate Charge: 51 nC
tr ⓘ - Rise Time: 37 nS
Cossⓘ - Output Capacitance: 646 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0068 Ohm
Package: TO252
