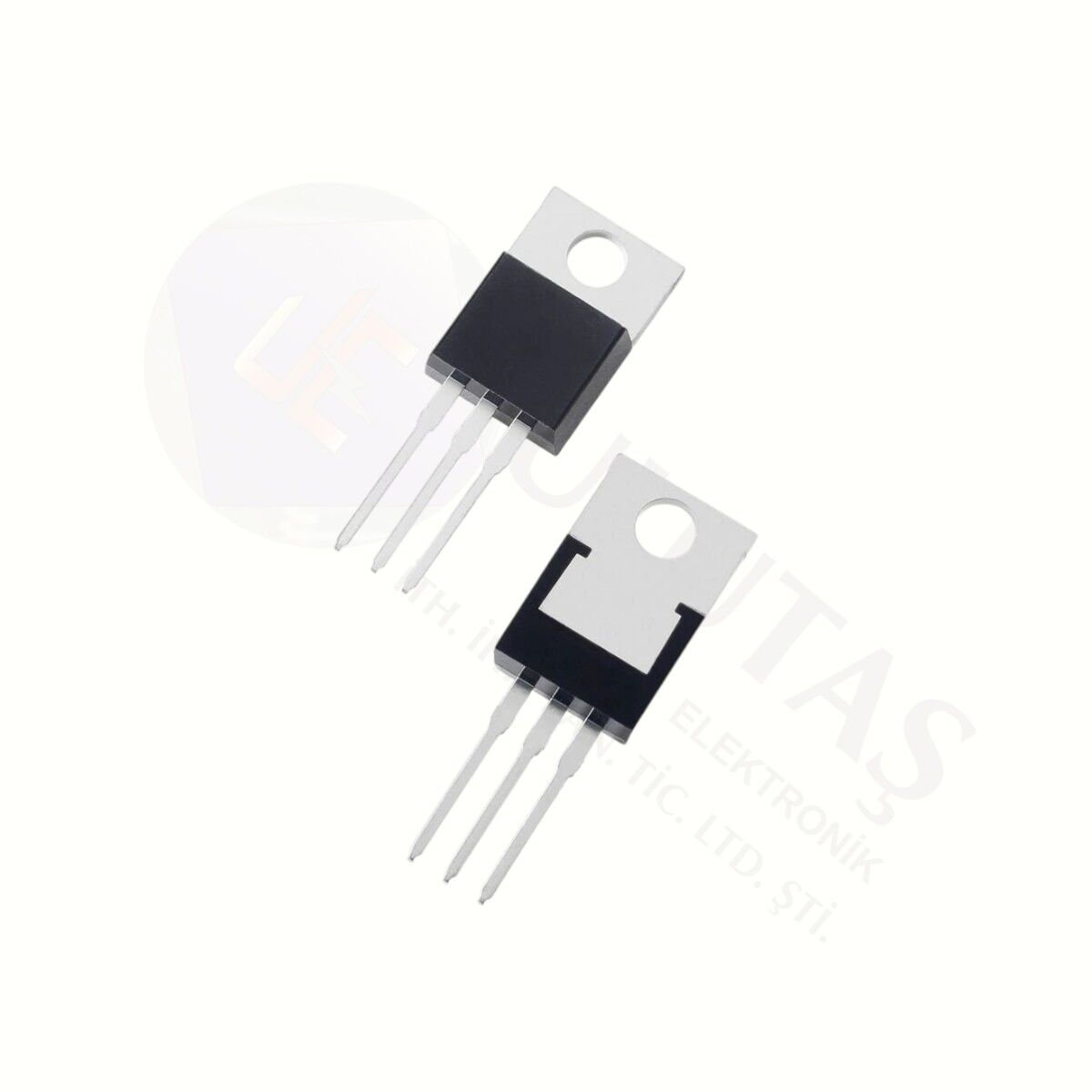

IPP147N12N3G TO-220 56A 120V 107W 0.0147OHM N-CHANNEL MOSFET
₺195,68 + KDV
20 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR0307
Fiyat
195,68 TL + KDV
*21,83 TL den başlayan taksitlerle!
IPP147N12N3G TO-220 56A 120V 107W 0.0147OHM N-CHANNEL MOSFET
Type Designator: IPP147N12N3G
Marking Code: 147N12N
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pdⓘ - Maximum Power Dissipation: 107 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 120 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
|Id|ⓘ - Maximum Drain Current: 56 A
Tjⓘ - Maximum Junction Temperature: 175 °C
Qgⓘ - Total Gate Charge: 37 nC
trⓘ - Rise Time: 9 nS
Cossⓘ - Output Capacitance: 304 pF
Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.0147 Ohm
Package: TO220
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
IPP147N12N3G TO-220 56A 120V 107W 0.0147OHM N-CHANNEL MOSFET
Type Designator: IPP147N12N3G
Marking Code: 147N12N
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pdⓘ - Maximum Power Dissipation: 107 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 120 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
|Id|ⓘ - Maximum Drain Current: 56 A
Tjⓘ - Maximum Junction Temperature: 175 °C
Qgⓘ - Total Gate Charge: 37 nC
trⓘ - Rise Time: 9 nS
Cossⓘ - Output Capacitance: 304 pF
Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.0147 Ohm
Package: TO220
