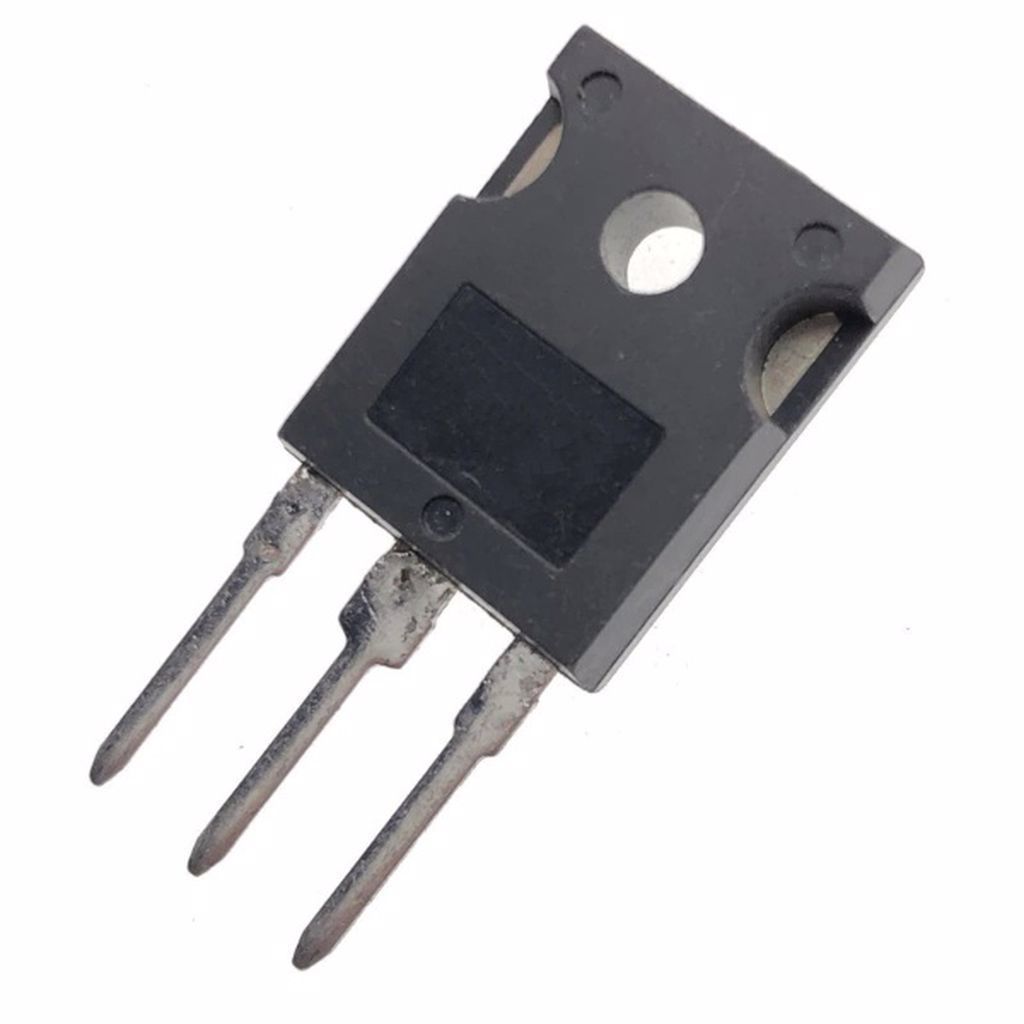

IPW60R041C6 - (6R041C6) TO-247 77.5A 600V 481W 0.041Ω N-CHANNEL MOSFET
₺711,99 + KDV
30 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR4979
Fiyat
711,99 TL + KDV
*79,44 TL den başlayan taksitlerle!
IPW60R041C6 - (6R041C6) TO-247 77.5A 600V 481W 0.041Ω N-CHANNEL MOSFET
| Product Attribute | Attribute Value | |
|---|---|---|
| Infineon | ||
| MOSFET | ||
| RoHS: | Details | |
| Si | ||
| Through Hole | ||
| TO-247-3 | ||
| N-Channel | ||
| 1 Channel | ||
| 600 V | ||
| 77.5 A | ||
| 37 mOhms | ||
| - 20 V, + 20 V | ||
| 2.5 V | ||
| 290 nC | ||
| - 55 C | ||
| + 150 C | ||
| 481 W | ||
| Enhancement | ||
| CoolMOS | ||
| Tube | ||
| Configuration: | Single | |
| Height: | 21.1 mm | |
| Length: | 16.13 mm | |
| Series: | CoolMOS C6 | |
| Transistor Type: | 1 N-Channel | |
| Width: | 5.21 mm | |
| Brand: | Infineon Technologies | |
| Fall Time: | 7 ns | |
| Product Type: | MOSFET |
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
IPW60R041C6 - (6R041C6) TO-247 77.5A 600V 481W 0.041Ω N-CHANNEL MOSFET
| Product Attribute | Attribute Value | |
|---|---|---|
| Infineon | ||
| MOSFET | ||
| RoHS: | Details | |
| Si | ||
| Through Hole | ||
| TO-247-3 | ||
| N-Channel | ||
| 1 Channel | ||
| 600 V | ||
| 77.5 A | ||
| 37 mOhms | ||
| - 20 V, + 20 V | ||
| 2.5 V | ||
| 290 nC | ||
| - 55 C | ||
| + 150 C | ||
| 481 W | ||
| Enhancement | ||
| CoolMOS | ||
| Tube | ||
| Configuration: | Single | |
| Height: | 21.1 mm | |
| Length: | 16.13 mm | |
| Series: | CoolMOS C6 | |
| Transistor Type: | 1 N-Channel | |
| Width: | 5.21 mm | |
| Brand: | Infineon Technologies | |
| Fall Time: | 7 ns | |
| Product Type: | MOSFET |
