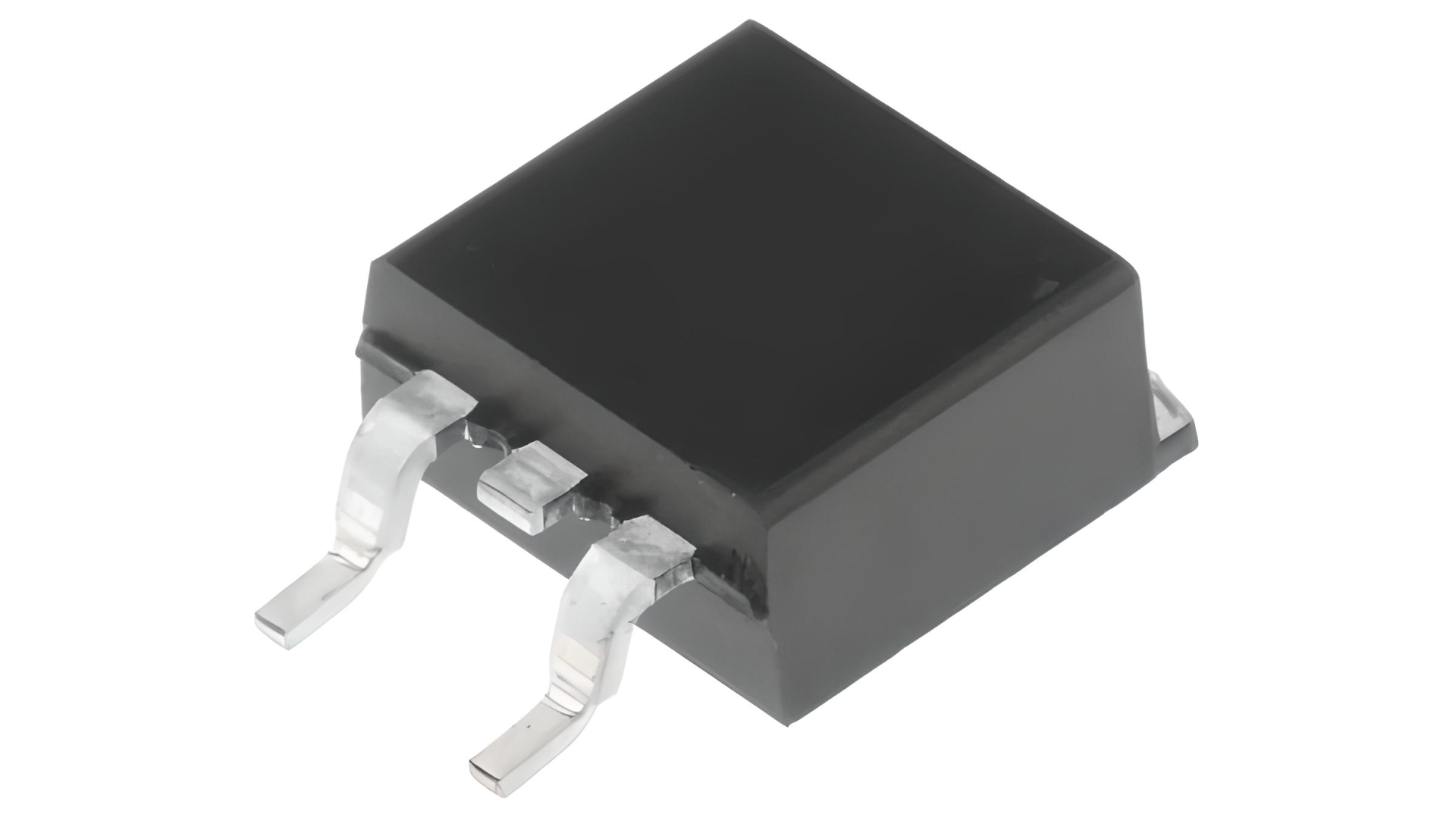

IRF2807STR TO-263 82A 75V 230W 13mΩ N-CHANNEL MOSFET
IRF2807S MOSFET
Type Designator: IRF2807S
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 75 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 82 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 160(max) nC
Rise Time (tr): 64 nS
Drain-Source Capacitance (Cd): 610 pF
Maximum Drain-Source On-State Resistance (Rds): 0.013 Ohm
Package: TO263
Ürün Bilgisi
IRF2807S MOSFET
Type Designator: IRF2807S
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 75 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 82 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 160(max) nC
Rise Time (tr): 64 nS
Drain-Source Capacitance (Cd): 610 pF
Maximum Drain-Source On-State Resistance (Rds): 0.013 Ohm
Package: TO263
