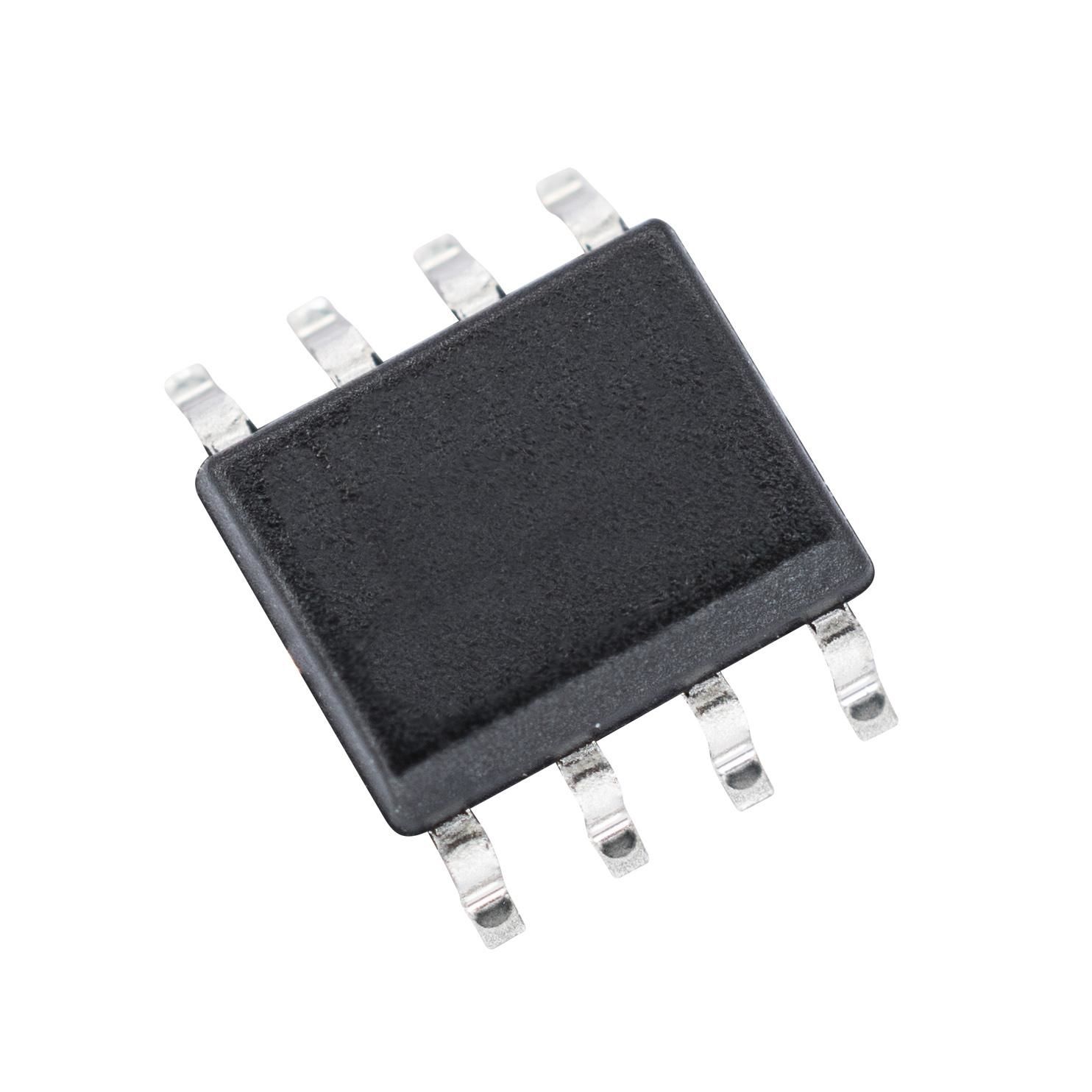

IRF7807Z SOIC-8 30V 11A 2.5W 13.8mΩ N-CHANNEL MOSFET
IRF7807Z MOSFET
Type Designator: IRF7807Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 2.5 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.25 V
Maximum Drain Current |Id|: 11 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 6.2 nS
Drain-Source Capacitance (Cd): 190 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0138 Ohm
Package: SO8
Ürün Bilgisi
IRF7807Z MOSFET
Type Designator: IRF7807Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 2.5 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.25 V
Maximum Drain Current |Id|: 11 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 6.2 nS
Drain-Source Capacitance (Cd): 190 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0138 Ohm
Package: SO8
