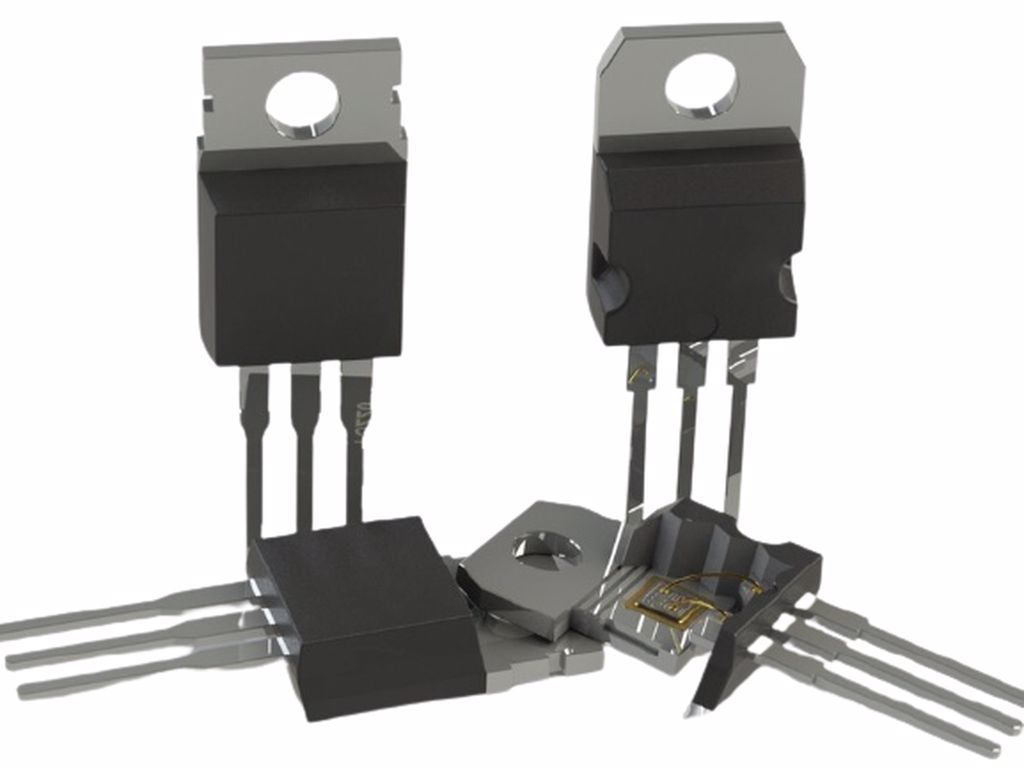

IRFB3307PBF 75V 120A TO-220 N-CHANNEL MOSFET
IRFB3307ZPBF
Type Designator: IRFB3307ZPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 75 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 120 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 79 nC
Rise Time (tr): 64 nS
Drain-Source Capacitance (Cd): 420 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0058 Ohm
Package: TO-220AB
Ürün Bilgisi
IRFB3307ZPBF
Type Designator: IRFB3307ZPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 75 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 120 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 79 nC
Rise Time (tr): 64 nS
Drain-Source Capacitance (Cd): 420 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0058 Ohm
Package: TO-220AB
