IRFB4229PBF TO-220AB 250V 46A 330W N-CHANNEL MOSFET
IRFB4229PBF
Type Designator: IRFB4229PBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 330 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 46 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 72 nC
Rise Time (tr): 31 nS
Drain-Source Capacitance (Cd): 390 pF
Maximum Drain-Source On-State Resistance (Rds): 0.046 Ohm

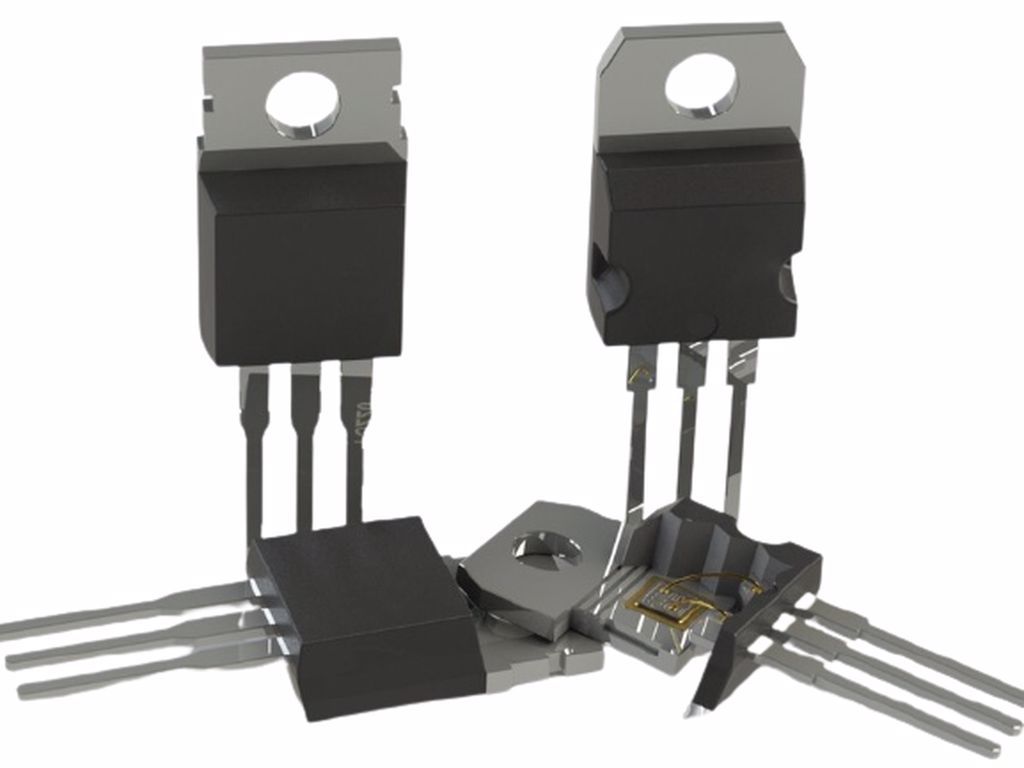

Package: TO-220AB
Ürün Bilgisi
IRFB4229PBF
Type Designator: IRFB4229PBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 330 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 46 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 72 nC
Rise Time (tr): 31 nS
Drain-Source Capacitance (Cd): 390 pF
Maximum Drain-Source On-State Resistance (Rds): 0.046 Ohm
Package: TO-220AB
