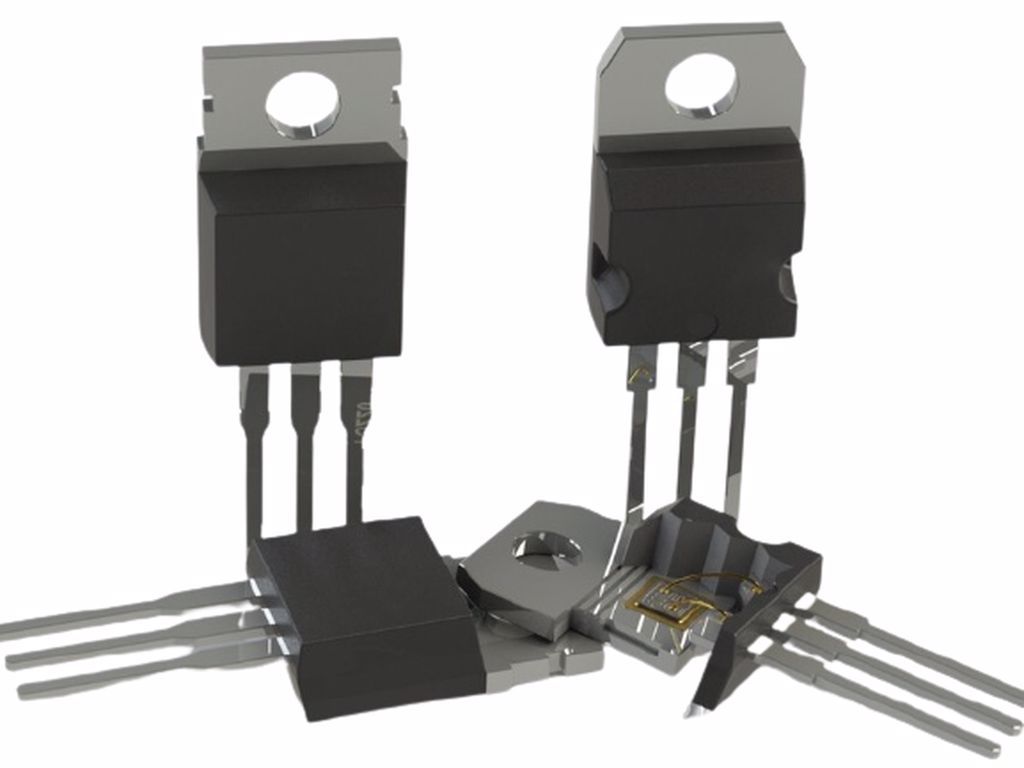

IRFB4321PBF 150V 85A TO-220 N-CHANNEL MOSFET
IRFB4321PBF MOSFET
Type Designator: IRFB4321PBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 350 W
Maximum Drain-Source Voltage |Vds|: 150 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 85 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 71 nC
Rise Time (tr): 60 nS
Drain-Source Capacitance (Cd): 390 pF
Maximum Drain-Source On-State Resistance (Rds): 0.015 Ohm
Package: TO-220AB
Ürün Bilgisi
IRFB4321PBF MOSFET
Type Designator: IRFB4321PBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 350 W
Maximum Drain-Source Voltage |Vds|: 150 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 85 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 71 nC
Rise Time (tr): 60 nS
Drain-Source Capacitance (Cd): 390 pF
Maximum Drain-Source On-State Resistance (Rds): 0.015 Ohm
Package: TO-220AB
