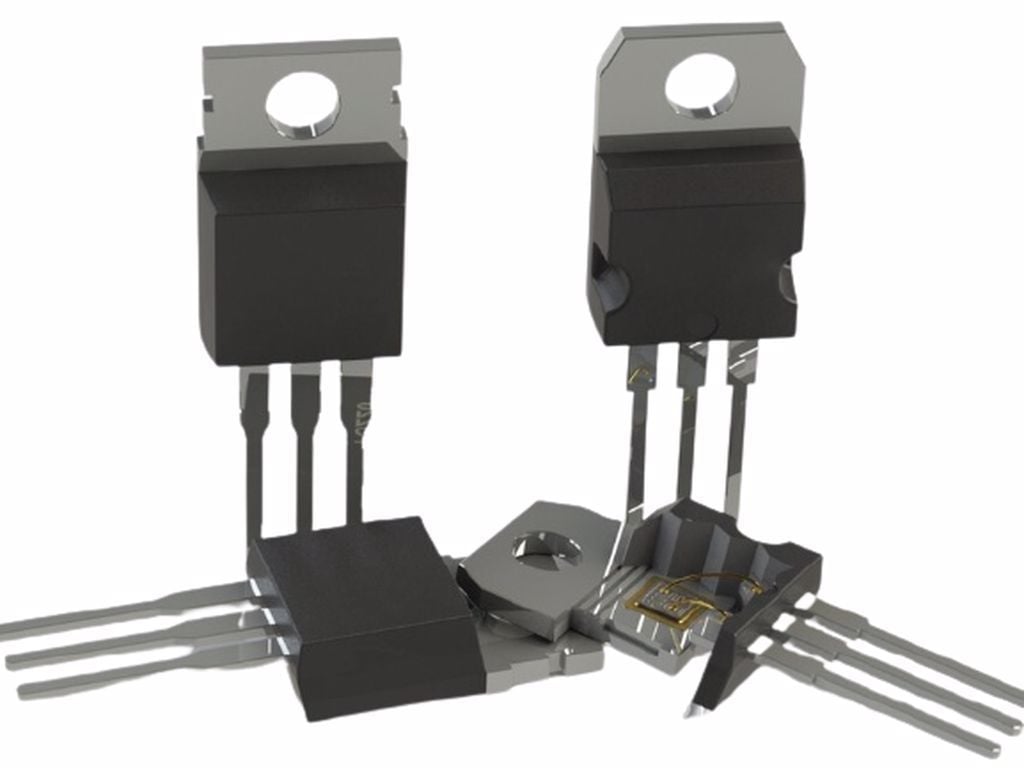

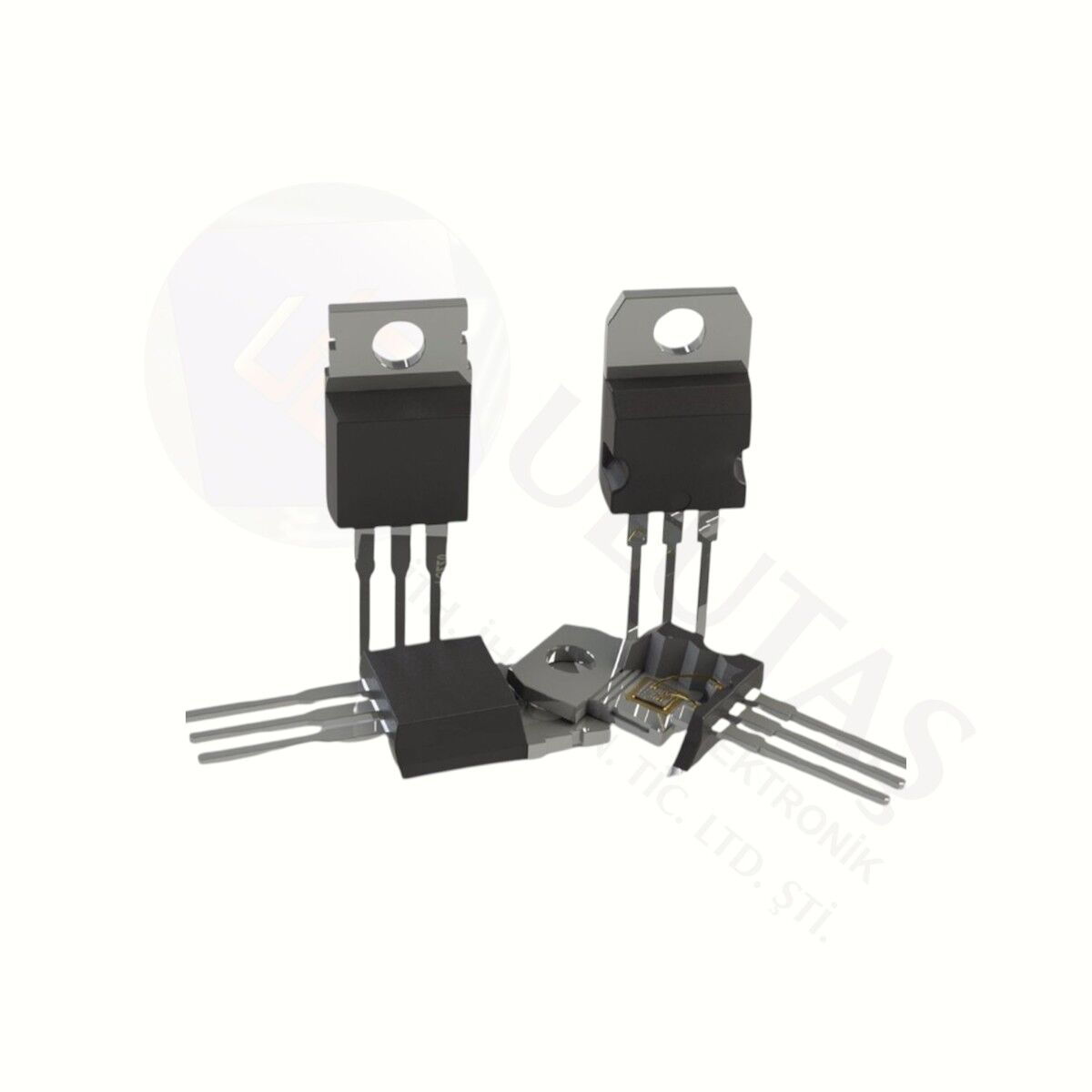

IRFB52N15DPBF 150V 51A TO-220 N-CHANNEL MOSFET
IRFB52N15DPBF MOSFET
Type Designator: IRFB52N15DPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 150 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 51 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 60 nC
Rise Time (tr): 47 nS
Drain-Source Capacitance (Cd): 590 pF
Maximum Drain-Source On-State Resistance (Rds): 0.032 Ohm
Package: TO-220AB
Ürün Bilgisi
IRFB52N15DPBF MOSFET
Type Designator: IRFB52N15DPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 150 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 51 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 60 nC
Rise Time (tr): 47 nS
Drain-Source Capacitance (Cd): 590 pF
Maximum Drain-Source On-State Resistance (Rds): 0.032 Ohm
Package: TO-220AB
