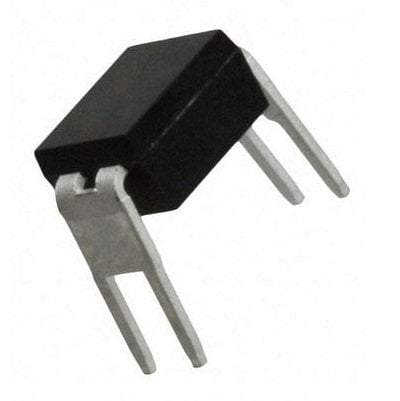

IRFD024 60V 2.5A HVMDIP MOSFET
IRFD024 MOSFET
Type Designator: IRFD024
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.3 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 10 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 2.5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 25 nC
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm
Ürün Bilgisi
IRFD024 MOSFET
Type Designator: IRFD024
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.3 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 10 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 2.5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 25 nC
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm
