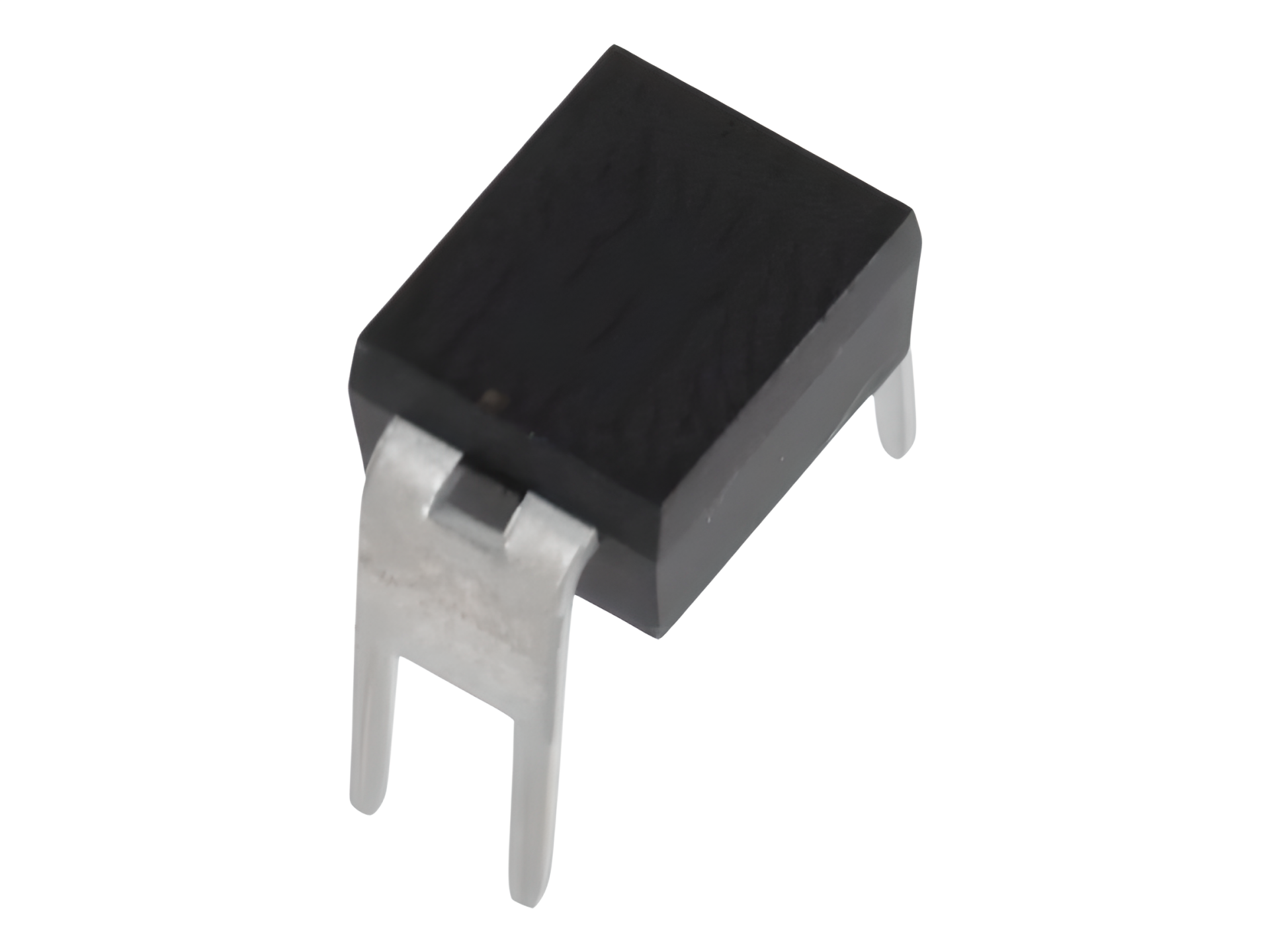

IRFD9120 MOSFET

Type Designator: IRFD9120

Type of Transistor: MOSFET

Type of Control Channel: P -Channel

Maximum Power Dissipation (Pd): 1.3 W

Maximum Drain-Source Voltage |Vds|: 100 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V

Maximum Drain Current |Id|: 1 A

Maximum Junction Temperature (Tj): 175 °C

Total Gate Charge (Qg): 18 nC

Maximum Drain-Source On-State Resistance (Rds): 0.6 Ohm
