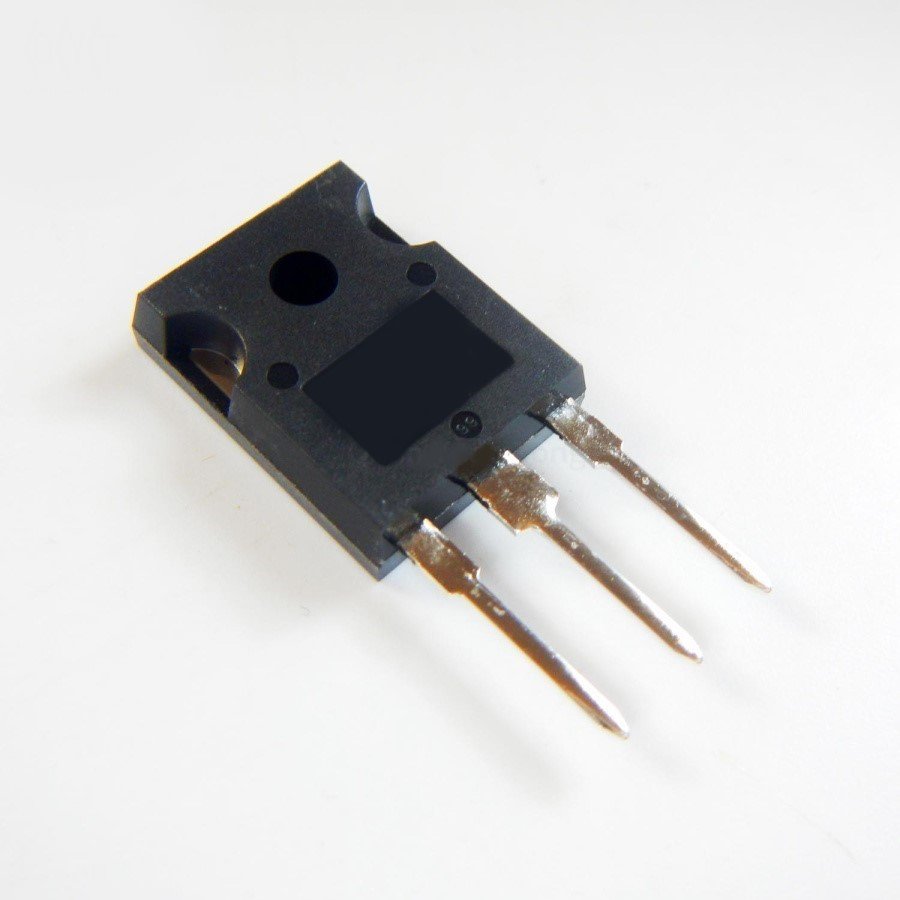

IRFP3206PBF TO-247 120A 60V N-CHANNEL MOSFET
IRFP3206PBF MOSFET
Type Designator: IRFP3206PBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 280 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 120 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 170 nC
Rise Time (tr): 82 nS
Drain-Source Capacitance (Cd): 720 pF
Maximum Drain-Source On-State Resistance (Rds): 0.003 Ohm
Package: TO247AC
Ürün Bilgisi
IRFP3206PBF MOSFET
Type Designator: IRFP3206PBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 280 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 120 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 170 nC
Rise Time (tr): 82 nS
Drain-Source Capacitance (Cd): 720 pF
Maximum Drain-Source On-State Resistance (Rds): 0.003 Ohm
Package: TO247AC
