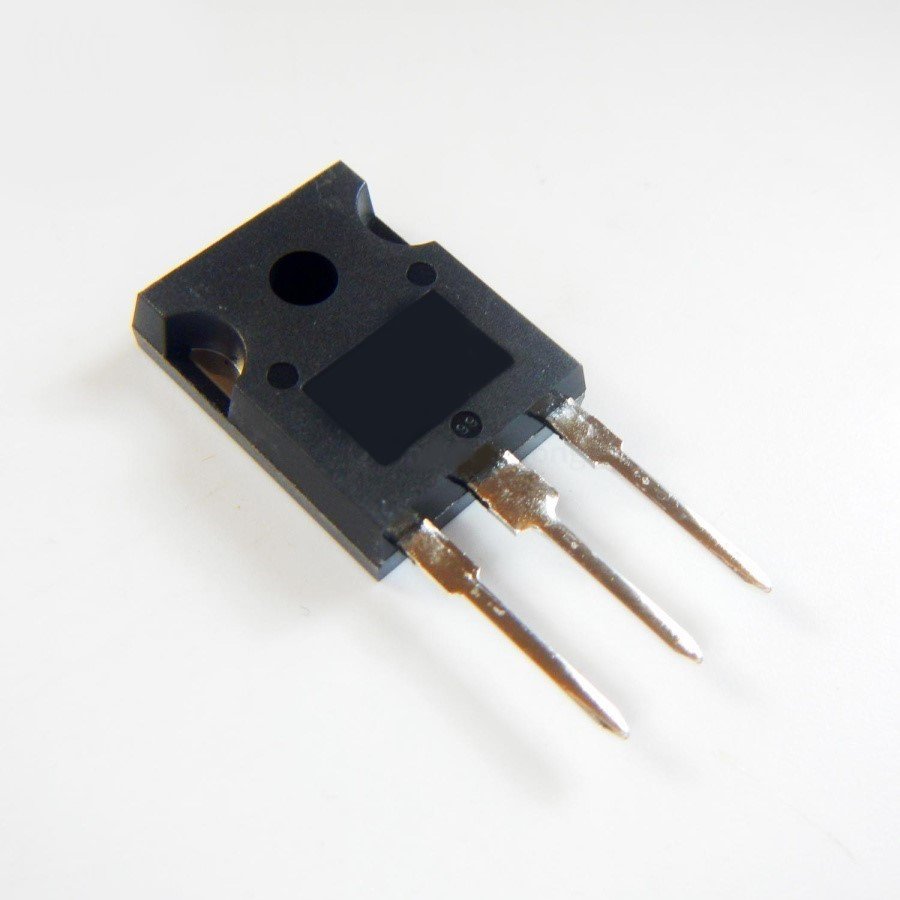

IRFP90N20DPBF TO-247 200V 94A 0.023Ω N-CHANNEL MOSFET
IRFP90N20DPBF
Type Designator: IRFP90N20DPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 580 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 94 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 270 nC
Rise Time (tr): 160 nS
Drain-Source Capacitance (Cd): 1070 pF
Maximum Drain-Source On-State Resistance (Rds): 0.023 Ohm
Package: TO-247AC
Ürün Bilgisi
IRFP90N20DPBF
Type Designator: IRFP90N20DPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 580 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 94 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 270 nC
Rise Time (tr): 160 nS
Drain-Source Capacitance (Cd): 1070 pF
Maximum Drain-Source On-State Resistance (Rds): 0.023 Ohm
Package: TO-247AC
