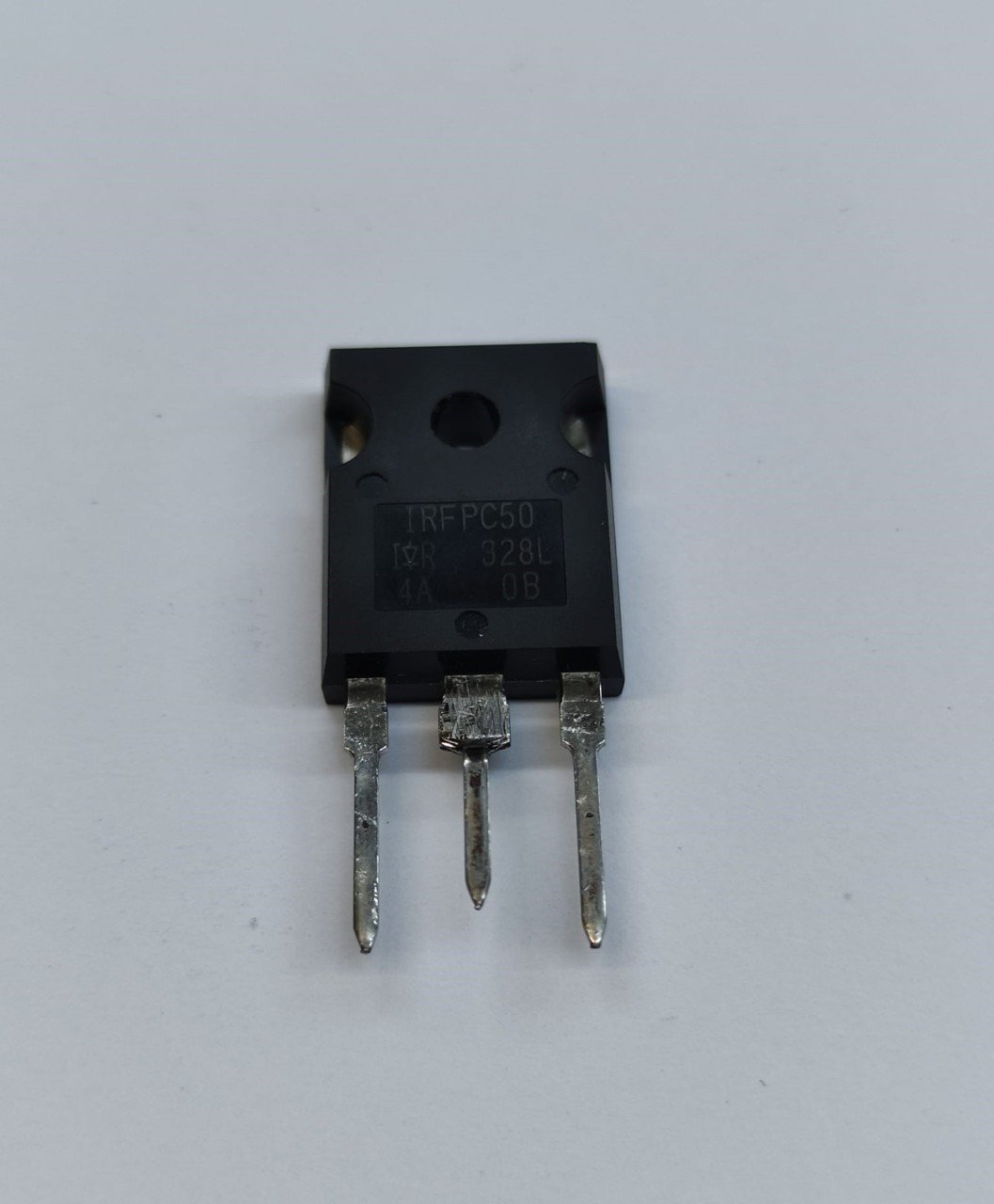

IRFPC50 TO-247 11A 600V MOSFET
IRFPC50
Type Designator: IRFPC50
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 180 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 11 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 140(max) nC
Rise Time (tr): 37 nS
Drain-Source Capacitance (Cd): 300 pF
Maximum Drain-Source On-State Resistance (Rds): 0.6 Ohm
Package: TO247AC
Ürün Bilgisi
IRFPC50
Type Designator: IRFPC50
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 180 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 11 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 140(max) nC
Rise Time (tr): 37 nS
Drain-Source Capacitance (Cd): 300 pF
Maximum Drain-Source On-State Resistance (Rds): 0.6 Ohm
Package: TO247AC
