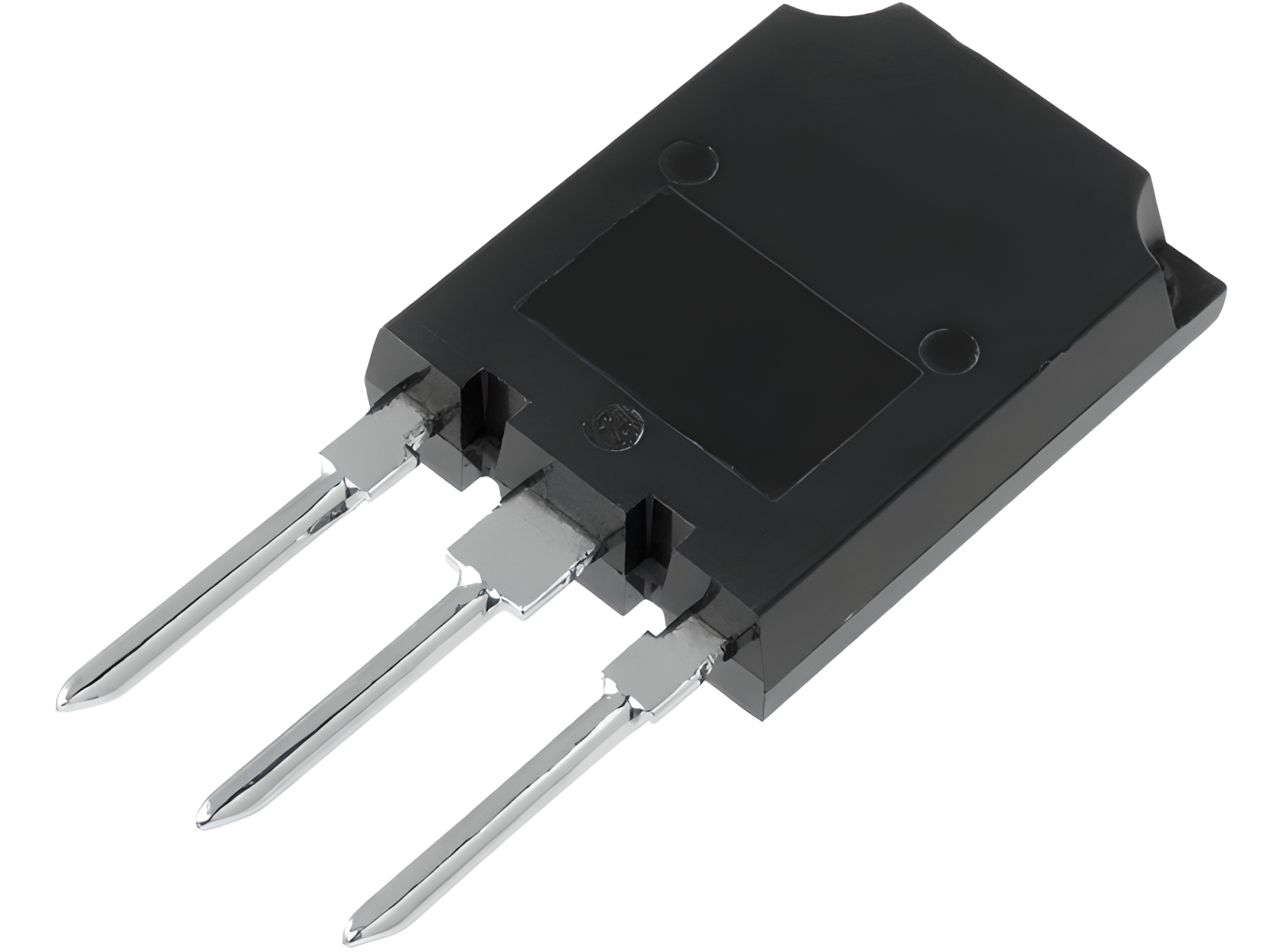

IRFPS37N50A TO-247 36A 500V 446W 0.13Ω N-CHANNEL MOSFET
IRFPS37N50A
Type Designator: IRFPS37N50A
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 446 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 36 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 180(max) nC
Rise Time (tr): 98 nS
Drain-Source Capacitance (Cd): 810 pF
Maximum Drain-Source On-State Resistance (Rds): 0.13 Ohm
Package: SUPER247
Ürün Bilgisi
IRFPS37N50A
Type Designator: IRFPS37N50A
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 446 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 36 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 180(max) nC
Rise Time (tr): 98 nS
Drain-Source Capacitance (Cd): 810 pF
Maximum Drain-Source On-State Resistance (Rds): 0.13 Ohm
Package: SUPER247
