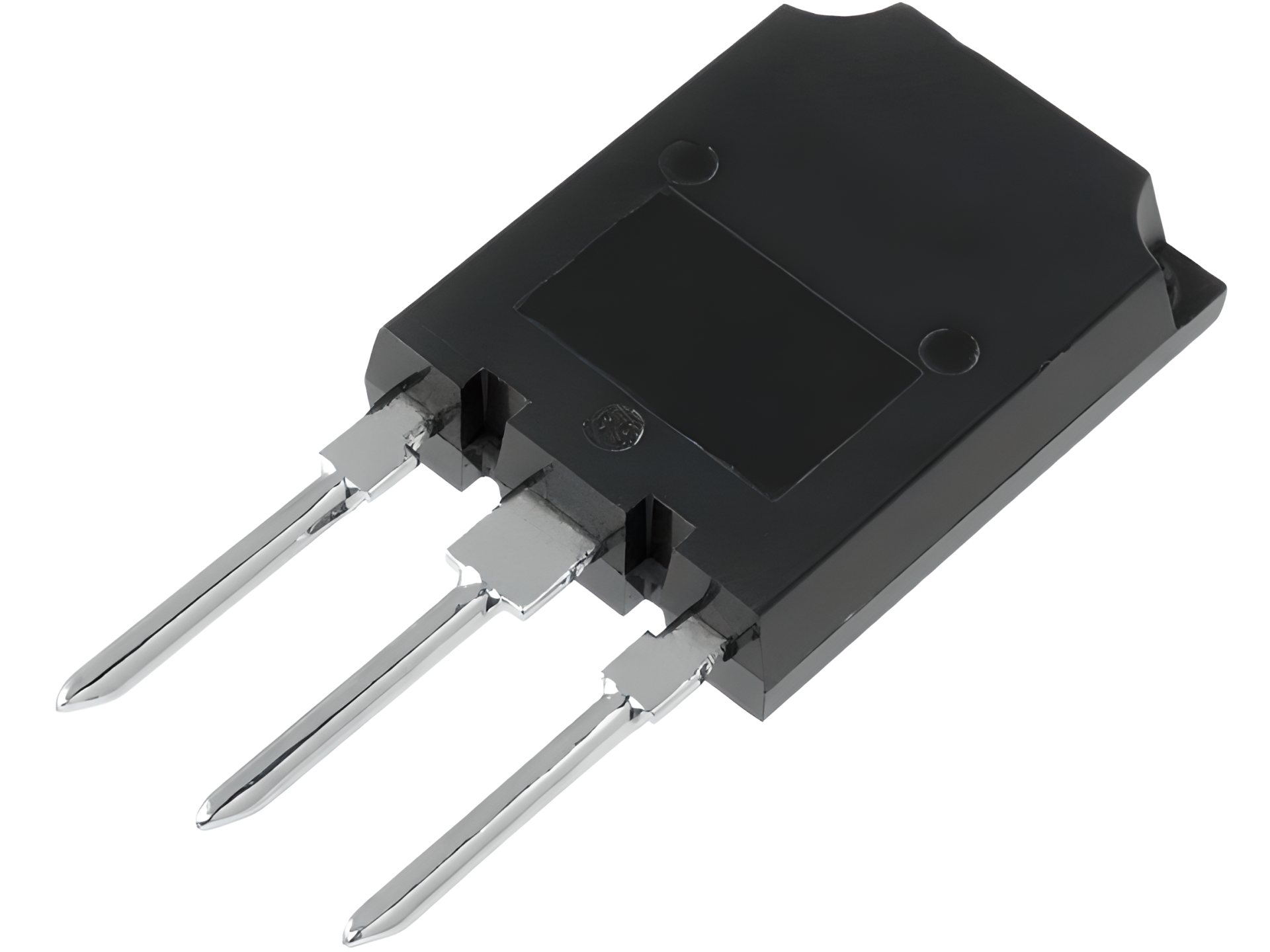

IRFPS40N60K SUPER-247 40A 600V 570W 0.130Ω N-CHANNEL MOSFET
IRFPS40N60K
Type Designator: IRFPS40N60K
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 570 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 40 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 330 nC
Rise Time (tr): 110 nS
Drain-Source Capacitance (Cd): 750 pF
Maximum Drain-Source On-State Resistance (Rds): 0.13 Ohm
Package: TO-274AA
Ürün Bilgisi
IRFPS40N60K
Type Designator: IRFPS40N60K
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 570 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 40 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 330 nC
Rise Time (tr): 110 nS
Drain-Source Capacitance (Cd): 750 pF
Maximum Drain-Source On-State Resistance (Rds): 0.13 Ohm
Package: TO-274AA
