IRFR3411TRPBF - (FR3411) TO-252 32A 100V 130W 44MHOM N-CHANNEL MOSFET
IRFR3411
Type Designator: IRFR3411
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 130 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 32 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 48 nC
Maximum Drain-Source On-State Resistance (Rds): 0.044 Ohm

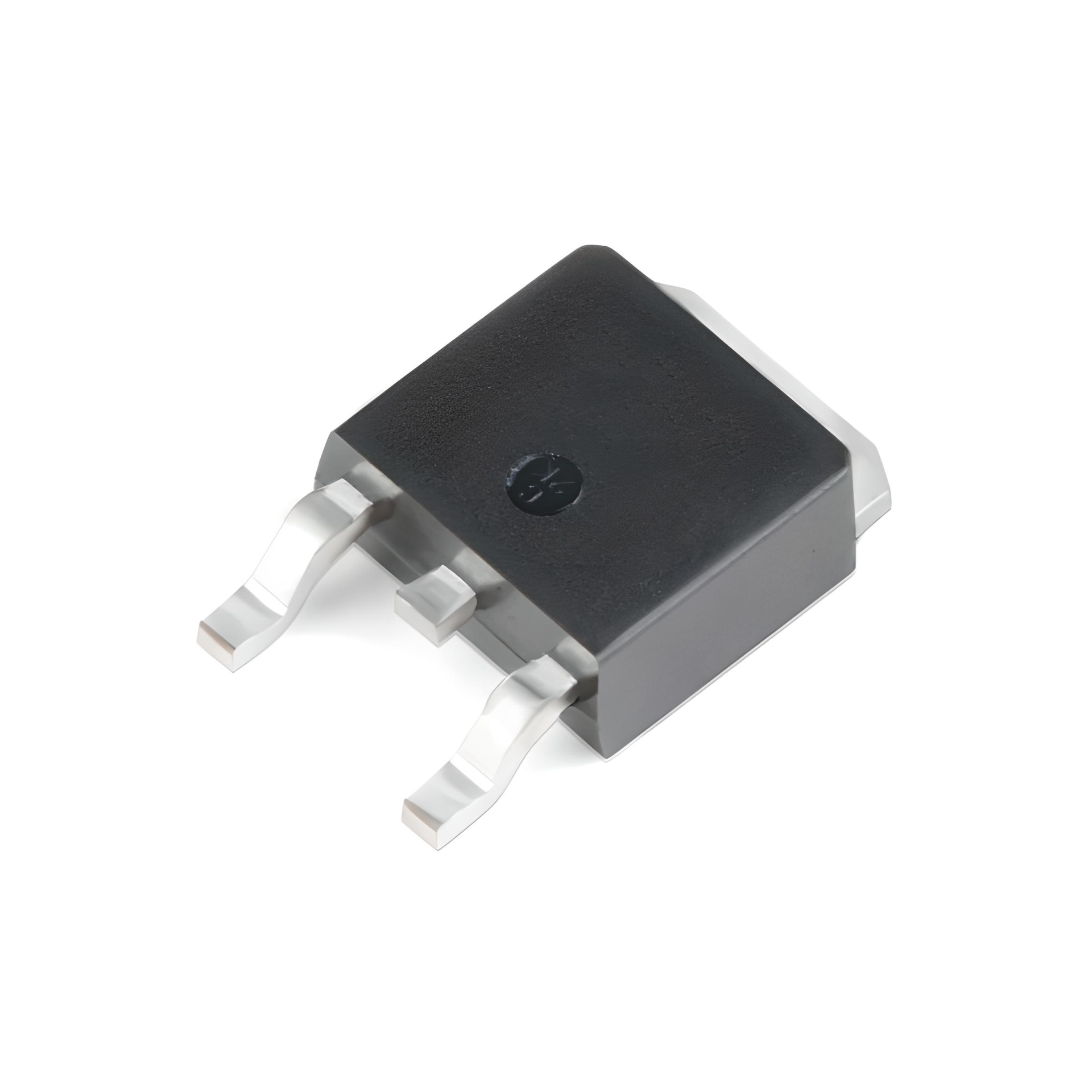

Package: DPAK
Ürün Bilgisi
IRFR3411
Type Designator: IRFR3411
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 130 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 32 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 48 nC
Maximum Drain-Source On-State Resistance (Rds): 0.044 Ohm
Package: DPAK
