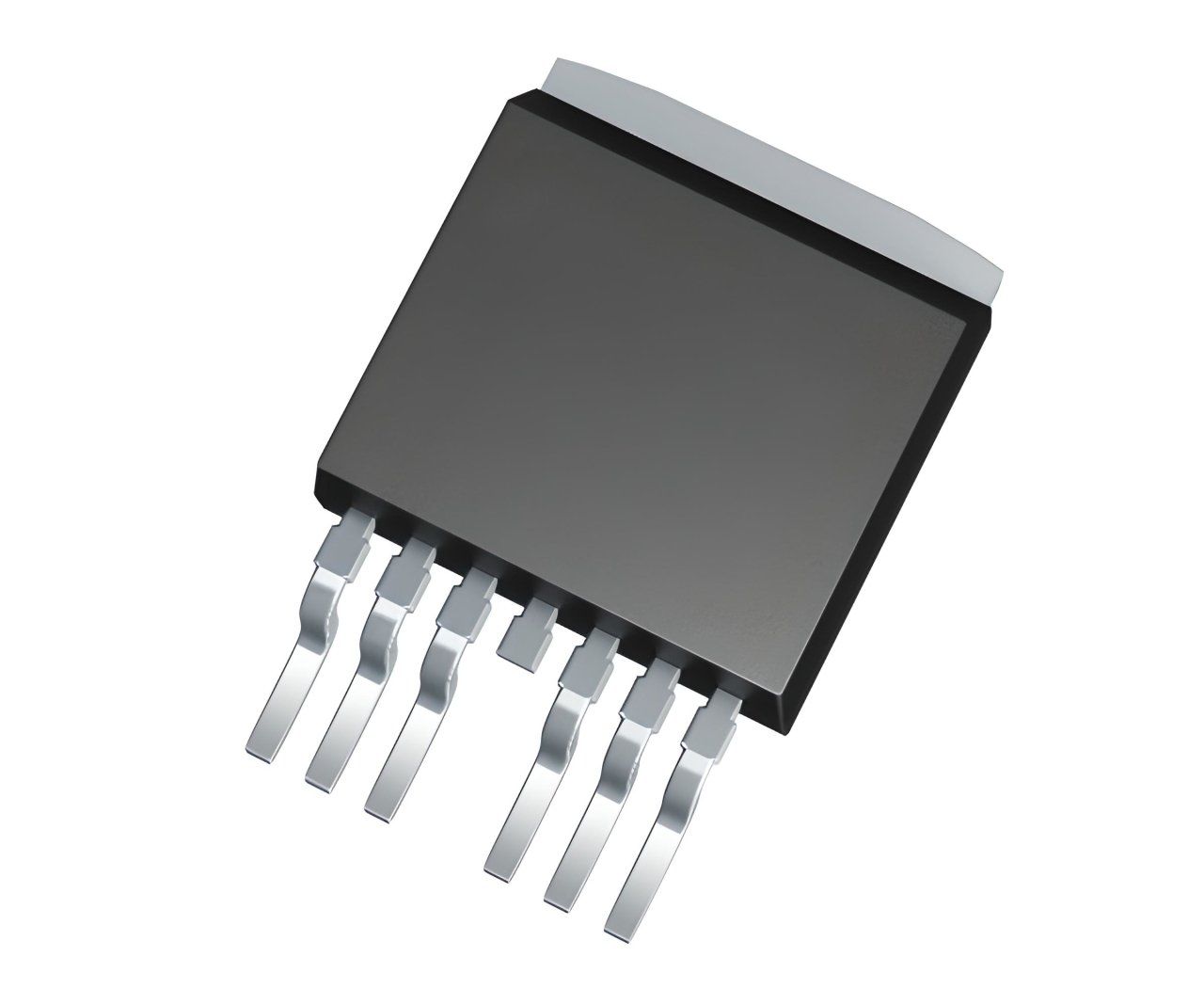

IRFS3006-7PPBF TO-263-7 60V 240A 375W 2.1mΩ N-CHANNEL MOSFET
IRFS3006-7PPBF
Type Designator: IRFS3006-7PPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 375 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 240 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 200 nC
Rise Time (tr): 61 nS
Drain-Source Capacitance (Cd): 1007 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0021 Ohm
Package: TO-263CA-7
Ürün Bilgisi
IRFS3006-7PPBF
Type Designator: IRFS3006-7PPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 375 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 240 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 200 nC
Rise Time (tr): 61 nS
Drain-Source Capacitance (Cd): 1007 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0021 Ohm
Package: TO-263CA-7
