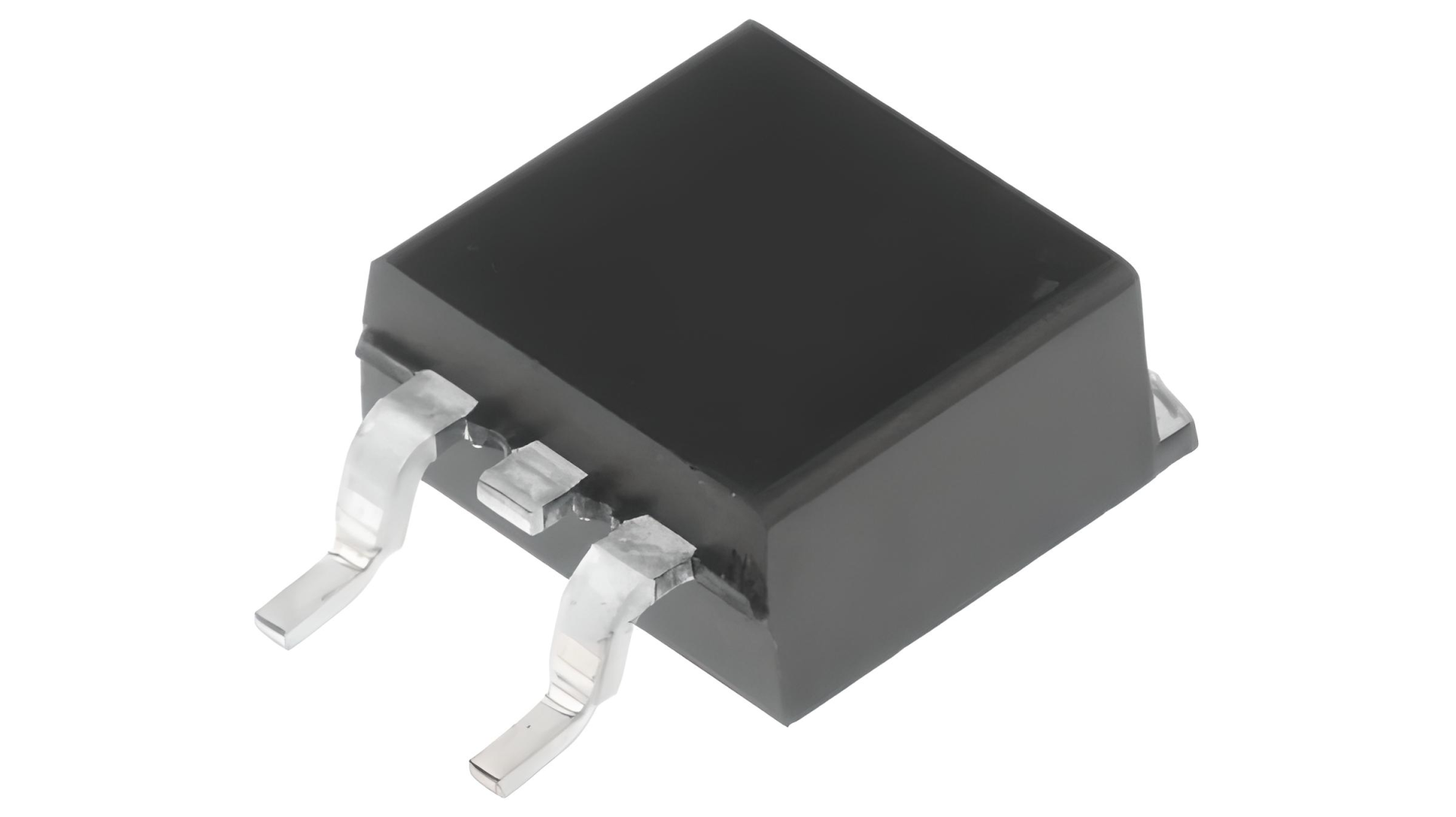

IRFS38N20DTRLP TO-263 44A 200V 320W 0.054OHM N-CHANNEL MOSFET
IRFS38N20D MOSFET
Type Designator: IRFS38N20D
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 320 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 44 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 76 nC
Rise Time (tr): 95 nS
Drain-Source Capacitance (Cd): 450 pF
Maximum Drain-Source On-State Resistance (Rds): 0.054 Ohm
Package: D2PAK
Ürün Bilgisi
IRFS38N20D MOSFET
Type Designator: IRFS38N20D
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 320 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 44 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 76 nC
Rise Time (tr): 95 nS
Drain-Source Capacitance (Cd): 450 pF
Maximum Drain-Source On-State Resistance (Rds): 0.054 Ohm
Package: D2PAK
