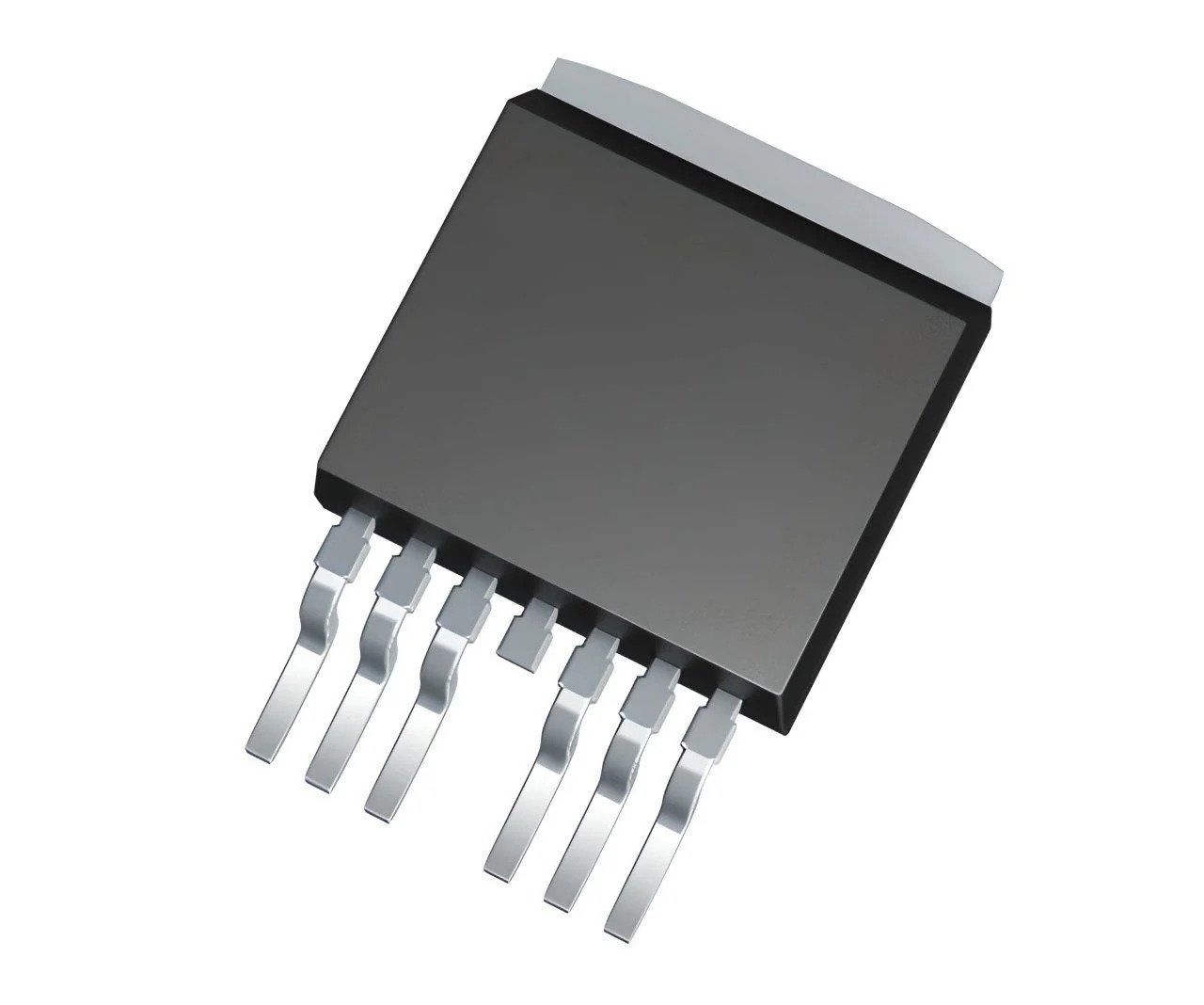

IRFS4010TRL7PP - (FS4010-7P) TO-263-7 100V 190A 380W 4.0mΩ N-CHANNEL MOSFET
IRFS4010-7PPBF
Type Designator: IRFS4010-7PPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 380 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 190 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 150 nC
Rise Time (tr): 56 nS
Drain-Source Capacitance (Cd): 650 pF
Maximum Drain-Source On-State Resistance (Rds): 0.004 Ohm
Package: TO-263CA-7
Ürün Bilgisi
IRFS4010-7PPBF
Type Designator: IRFS4010-7PPBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 380 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 190 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 150 nC
Rise Time (tr): 56 nS
Drain-Source Capacitance (Cd): 650 pF
Maximum Drain-Source On-State Resistance (Rds): 0.004 Ohm
Package: TO-263CA-7
