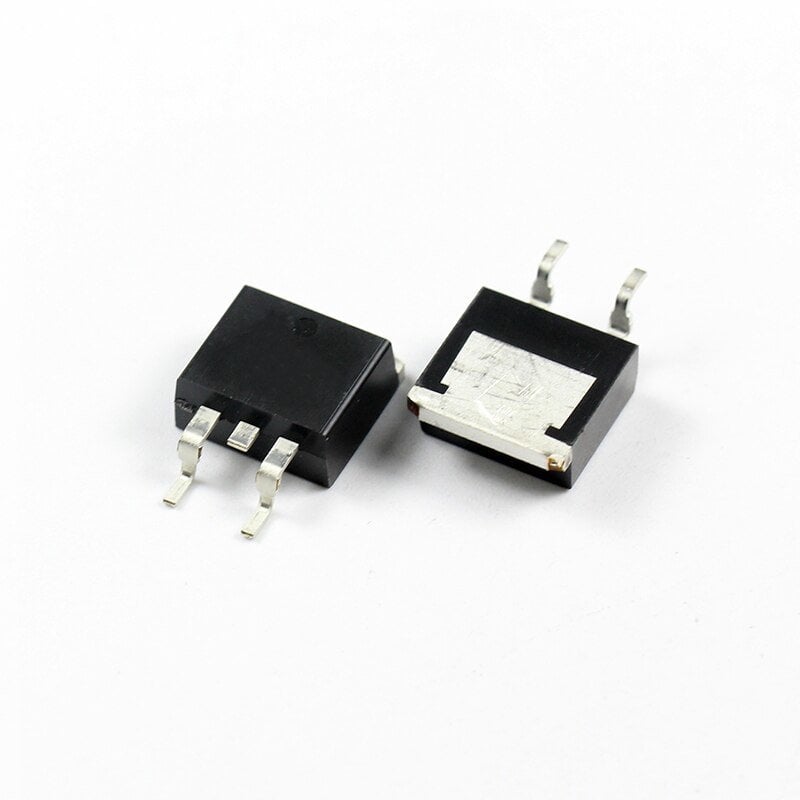

IRFS4310ZTRLPBF TO-263 127A 100V 250W N-CHANNEL MOSFET
IRFS4310Z
Type Designator: IRFS4310Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 250 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 127 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 120 nC
Maximum Drain-Source On-State Resistance (Rds): 0.006 Ohm
Package: D2PAK
Ürün Bilgisi
IRFS4310Z
Type Designator: IRFS4310Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 250 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 127 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 120 nC
Maximum Drain-Source On-State Resistance (Rds): 0.006 Ohm
Package: D2PAK
