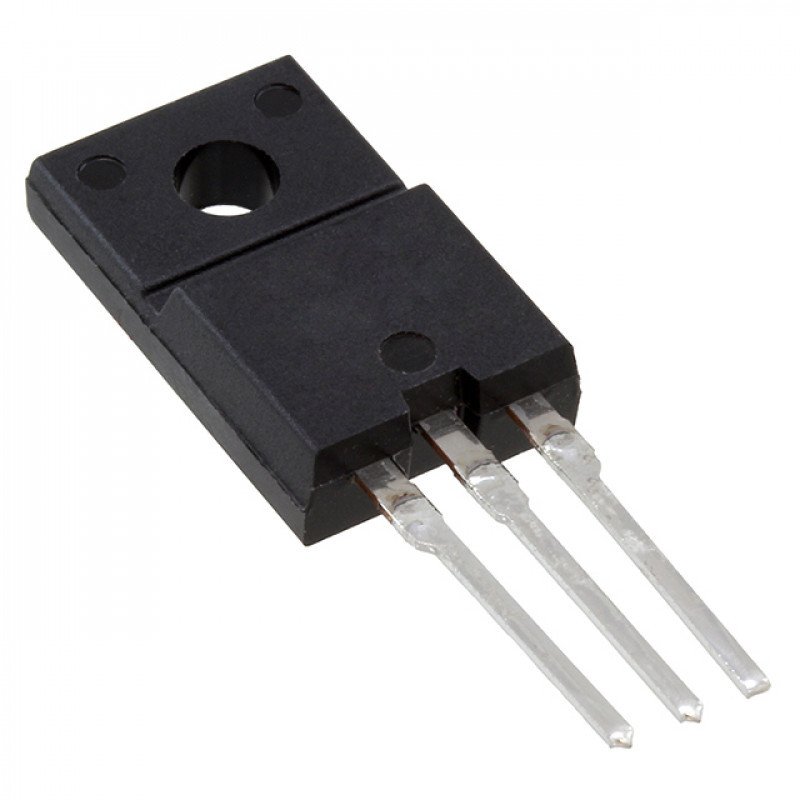

IRFS840B TO-220F 8A 500V 44W 0.8OHM N-CHANNEL MOSFET
IRFS840B
Type Designator: IRFS840B
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 44 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 41 nC
Rise Time (tr): 65 nS
Drain-Source Capacitance (Cd): 145 pF
Maximum Drain-Source On-State Resistance (Rds): 0.8 Ohm
Package: TO-220F
Ürün Bilgisi
IRFS840B
Type Designator: IRFS840B
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 44 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 41 nC
Rise Time (tr): 65 nS
Drain-Source Capacitance (Cd): 145 pF
Maximum Drain-Source On-State Resistance (Rds): 0.8 Ohm
Package: TO-220F
