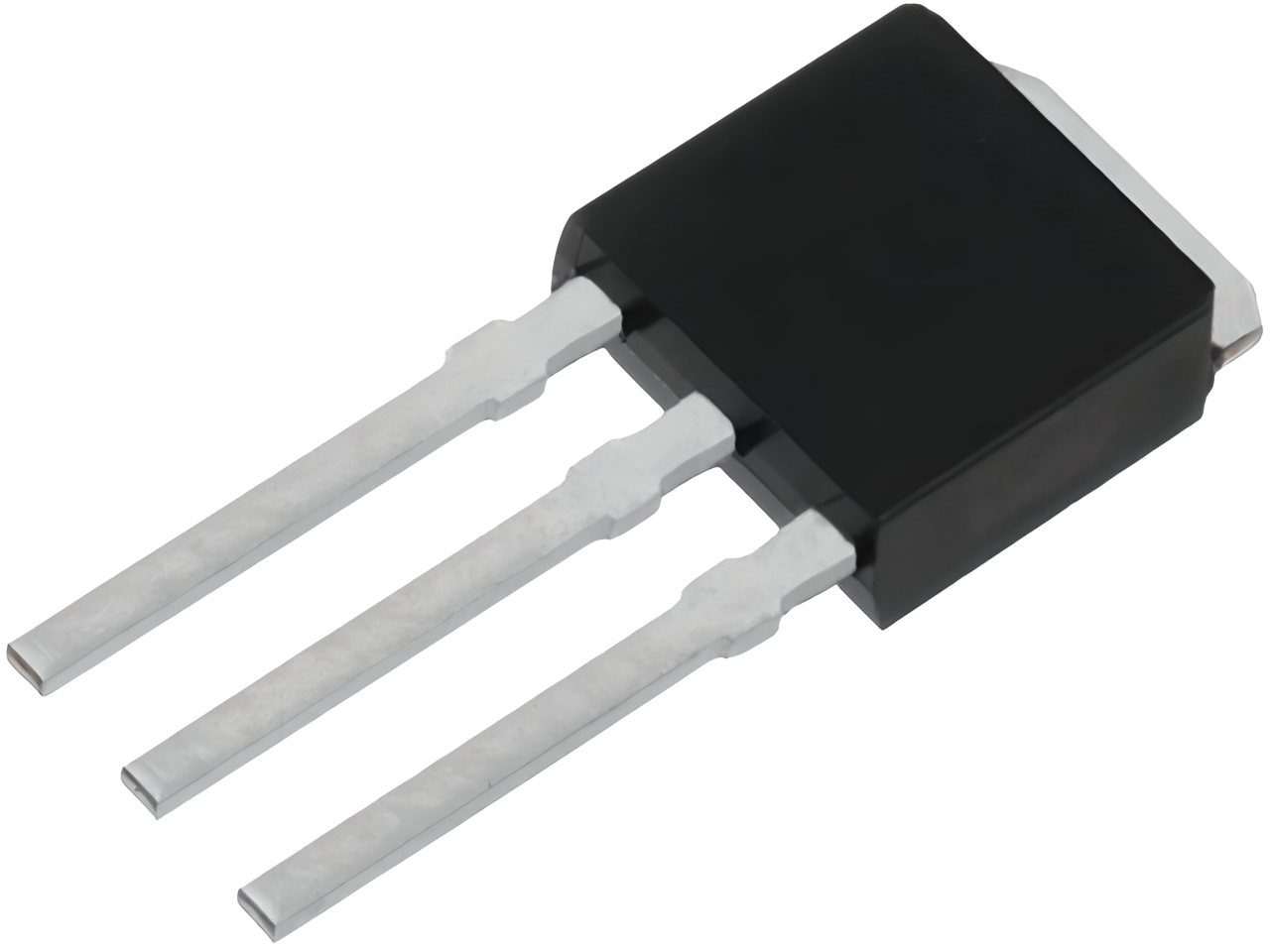

IRFU320PBF TO-251 3.1A 400V 2.5W (Ta), 42W (Tc) 1.8Ω N-CHANNEL MOSFET
IRFU320
Type Designator: IRFU320
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 42 W
Maximum Drain-Source Voltage |Vds|: 400 V
Maximum Gate-Source Voltage |Vgs|: 10 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 3.1 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 20 nC
Maximum Drain-Source On-State Resistance (Rds): 1.8 Ohm
Package: TO251AA
Ürün Bilgisi
IRFU320
Type Designator: IRFU320
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 42 W
Maximum Drain-Source Voltage |Vds|: 400 V
Maximum Gate-Source Voltage |Vgs|: 10 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 3.1 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 20 nC
Maximum Drain-Source On-State Resistance (Rds): 1.8 Ohm
Package: TO251AA
