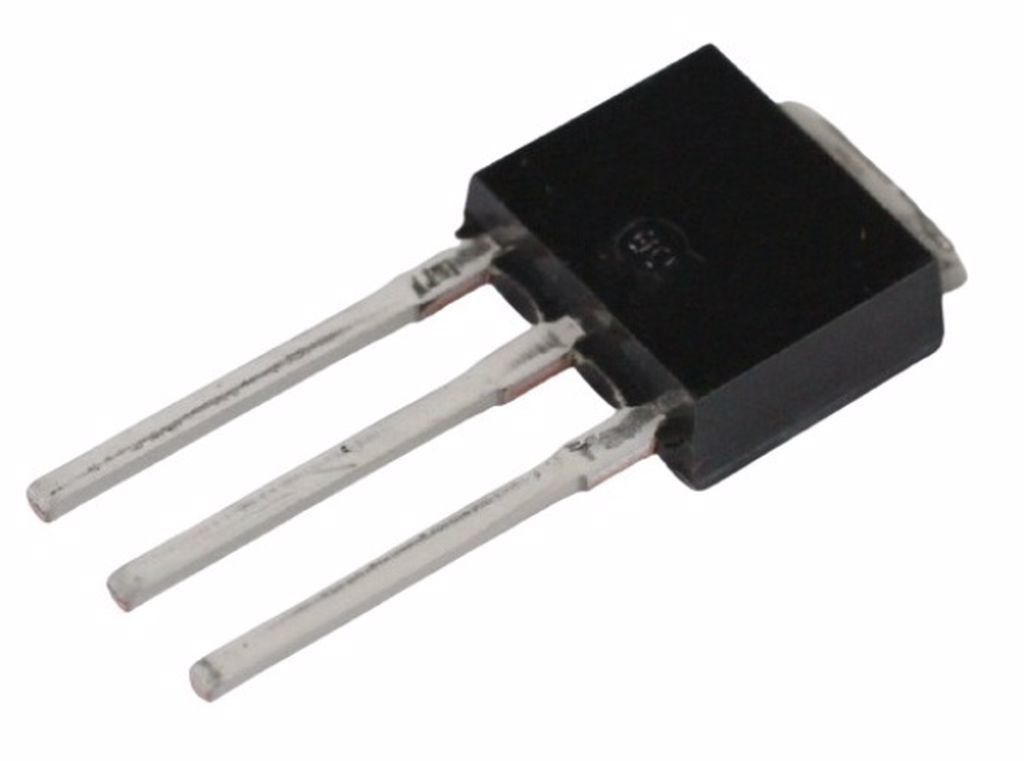

IRFUC20PBF TO-251 2A 600V N-CHANNEL MOSFET
IRFUC20
Type Designator: IRFUC20
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 42 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 10 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 18 nC
Maximum Drain-Source On-State Resistance (Rds): 4.4 Ohm
Package: TO251AA
Ürün Bilgisi
IRFUC20
Type Designator: IRFUC20
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 42 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 10 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 18 nC
Maximum Drain-Source On-State Resistance (Rds): 4.4 Ohm
Package: TO251AA
