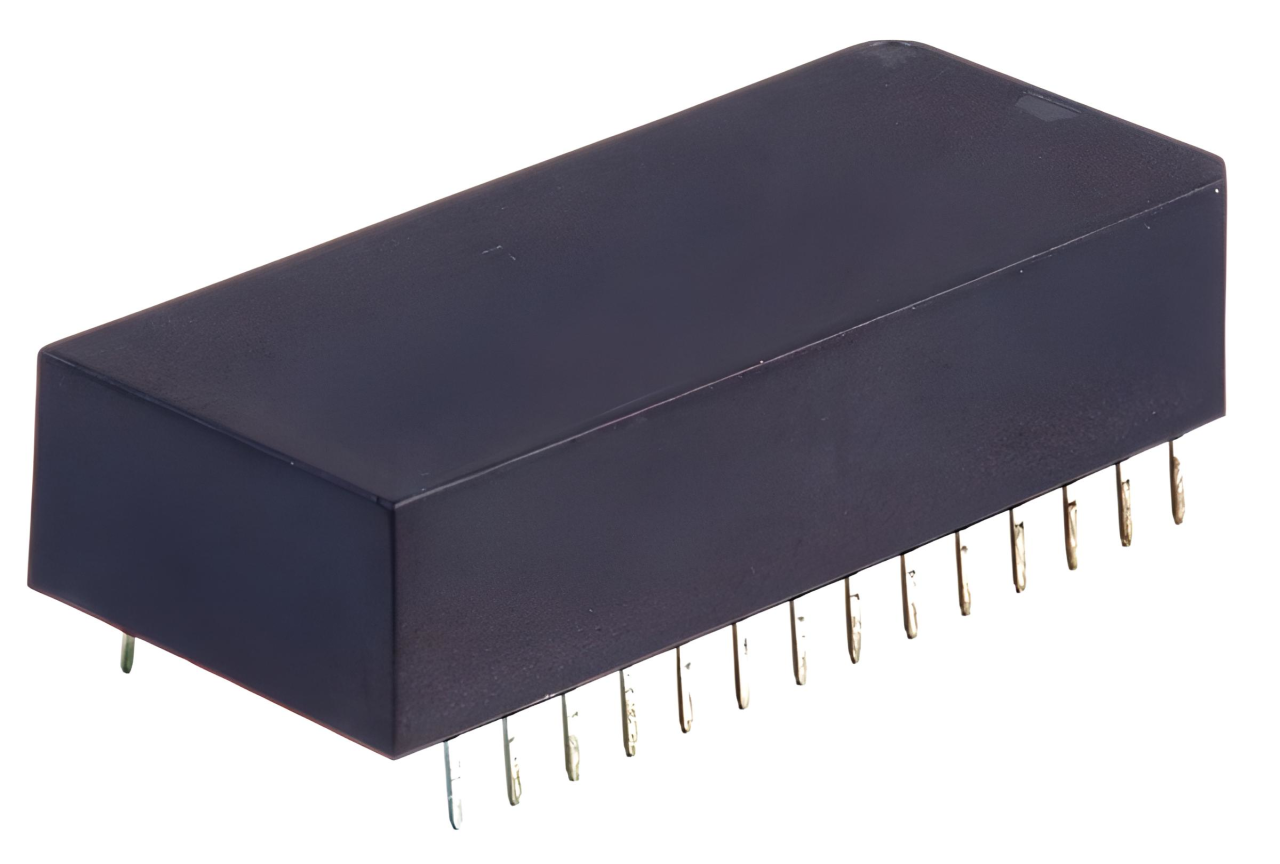

M48Z08-100PC1 PDIP-28 MEMORY DATA STORAGE NVSRAM
₺689,92 + KDV
M48Z08-100PC1 PDIP-28 MEMORY DATA STORAGE NVSRAM
| Product Attribute | Attribute Value | |
|---|---|---|
| Manufacturer: | STMicroelectronics | |
| NVRAM | ||
| RoHS: | Details | |
| Package/Case: | PCDIP-28 | |
| Interface Type: | Parallel | |
| Memory Size: | 64 kbit | |
| Organisation: | 8 k x 8 | |
| Data Bus Width: | 8 bit | |
| Access Time: | 100 ns | |
| Supply Voltage - Max: | 5.5 V | |
| Supply Voltage - Min: | 4.75 V | |
| Operating Supply Current: | 80 mA | |
| Minimum Operating Temperature: | 0 C | |
| Maximum Operating Temperature: | + 70 C | |
| Series: | M48Z08 |
