MJ10023

Type Designator: MJ10023

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 250 W

Maximum Collector-Base Voltage |Vcb|: 600 V

Maximum Collector-Emitter Voltage |Vce|: 400 V

Maximum Emitter-Base Voltage |Veb|: 8 V

Maximum Collector Current |Ic max|: 40 A

Max. Operating Junction Temperature (Tj): 200 °C

Collector Capacitance (Cc): 600 pF

Forward Current Transfer Ratio (hFE), MIN: 50

Noise Figure, dB: -

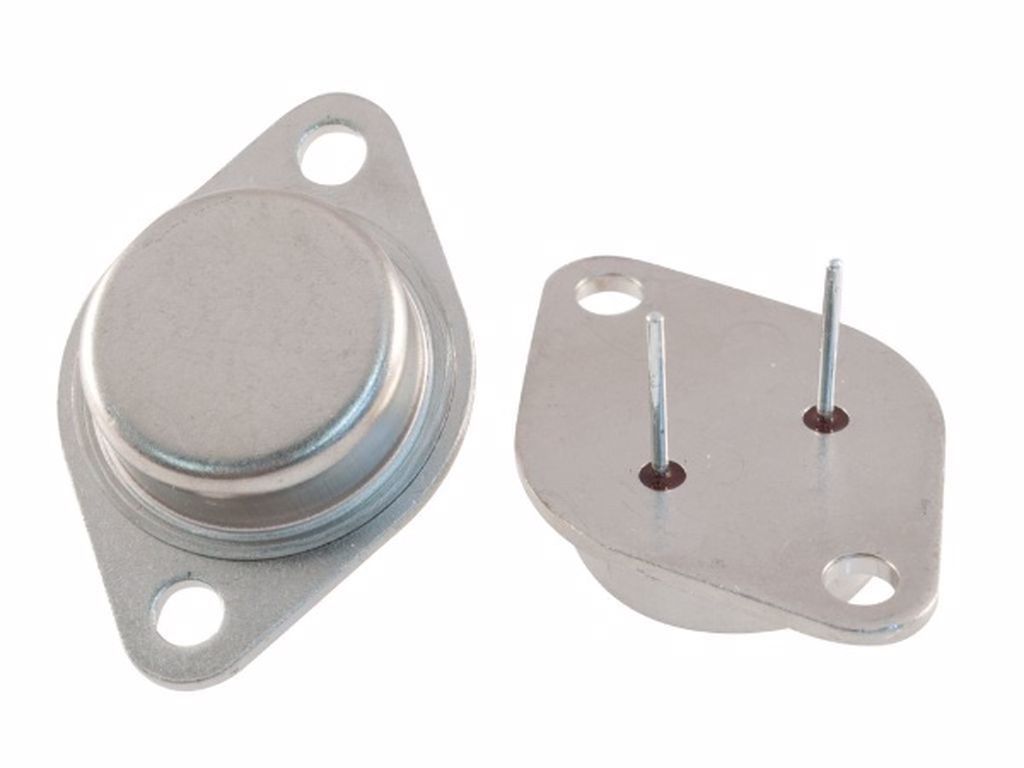

Package: TO3
