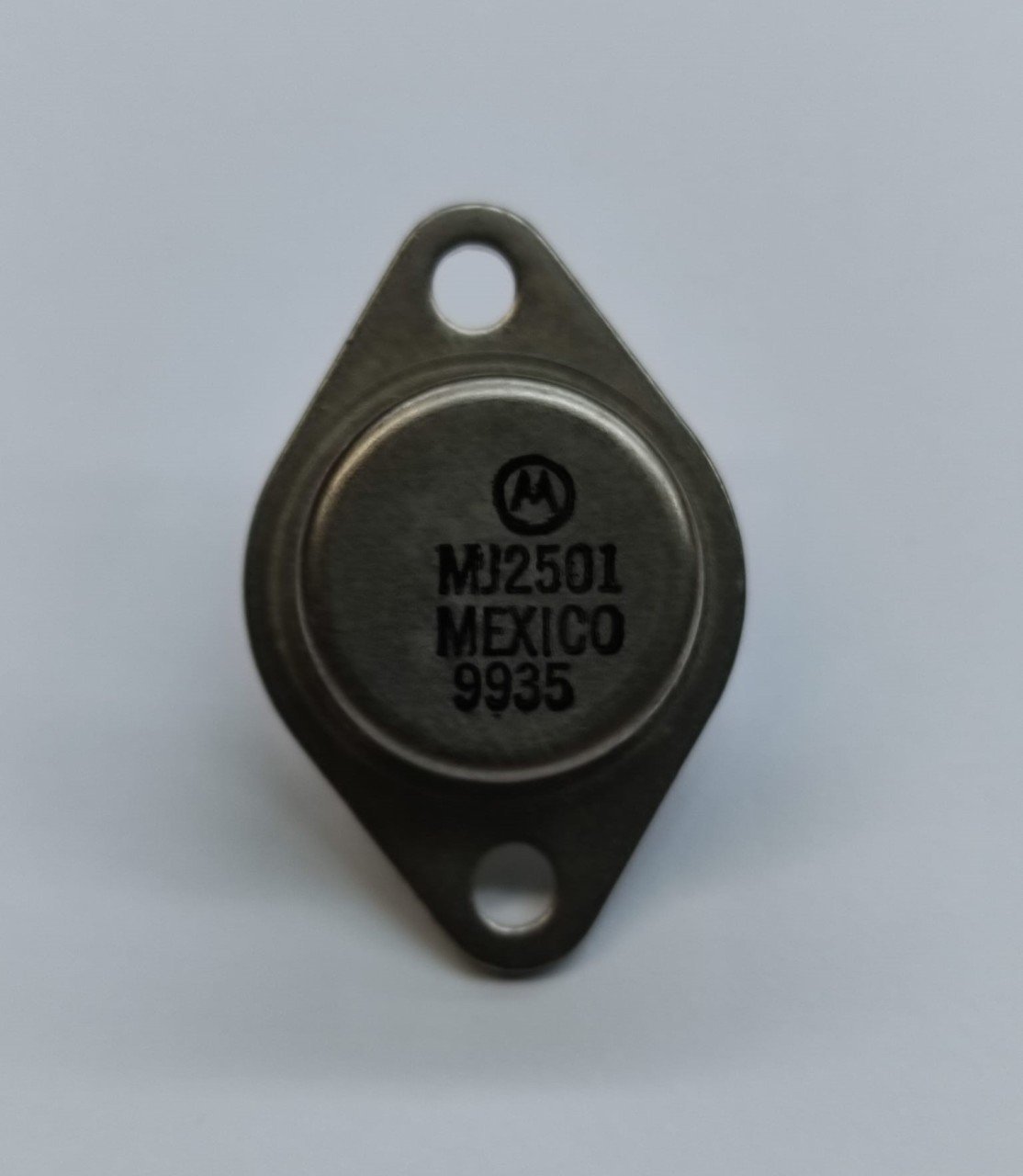

MJ2501

Type Designator: MJ2501

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 150 W

Maximum Collector-Base Voltage |Vcb|: 80 V

Maximum Collector-Emitter Voltage |Vce|: 80 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 10 A

Max. Operating Junction Temperature (Tj): 200 °C

Forward Current Transfer Ratio (hFE), MIN: 1000

Noise Figure, dB: -

Package: TO3
