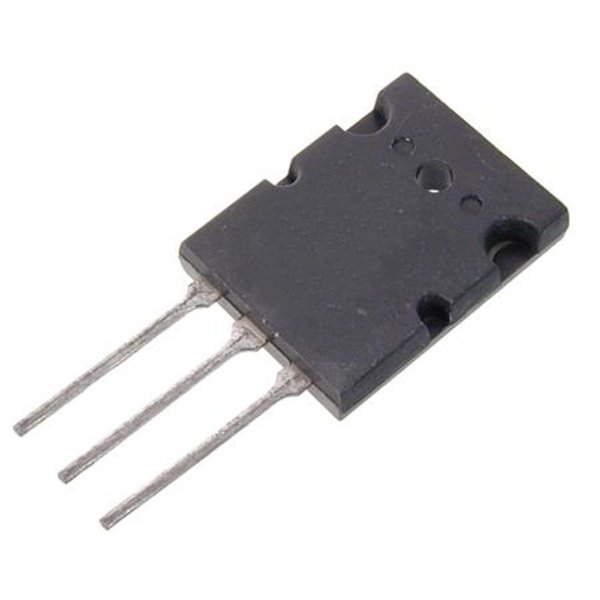

MJL1302AG TO-264 15A 260V 200W 30MHz PNP BIPOLAR TRANSISTOR
MJL1302AG
Type Designator: MJL1302AG
SMD Transistor Code: MJL1302A
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 200 W
Maximum Collector-Base Voltage |Vcb|: 260 V
Maximum Collector-Emitter Voltage |Vce|: 260 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 600 pF
Forward Current Transfer Ratio (hFE), MIN: 45
Package: TO264
Ürün Bilgisi
MJL1302AG
Type Designator: MJL1302AG
SMD Transistor Code: MJL1302A
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 200 W
Maximum Collector-Base Voltage |Vcb|: 260 V
Maximum Collector-Emitter Voltage |Vce|: 260 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 600 pF
Forward Current Transfer Ratio (hFE), MIN: 45
Package: TO264
