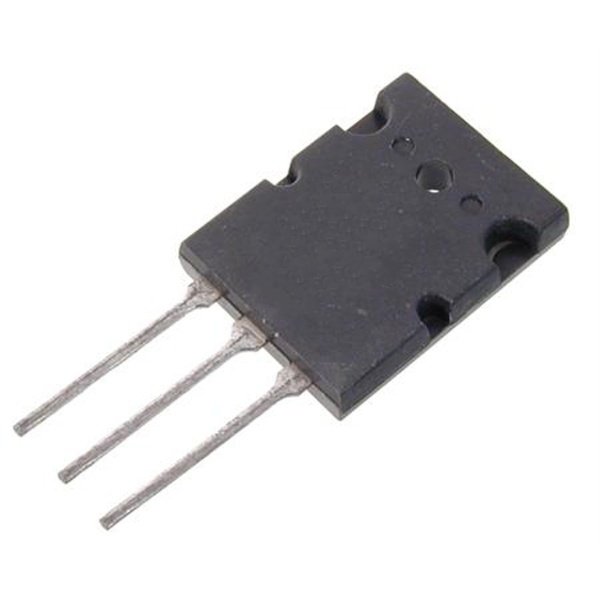

MJL21195G TO-3PL 16A 250V PNP BIPOLAR TRANSISTOR
MJL21195G
Type Designator: MJL21195G
SMD Transistor Code: MJL21195
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 200 W
Maximum Collector-Base Voltage |Vcb|: 400 V
Maximum Collector-Emitter Voltage |Vce|: 250 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 16 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 500 pF
Forward Current Transfer Ratio (hFE), MIN: 25
Noise Figure, dB: -
