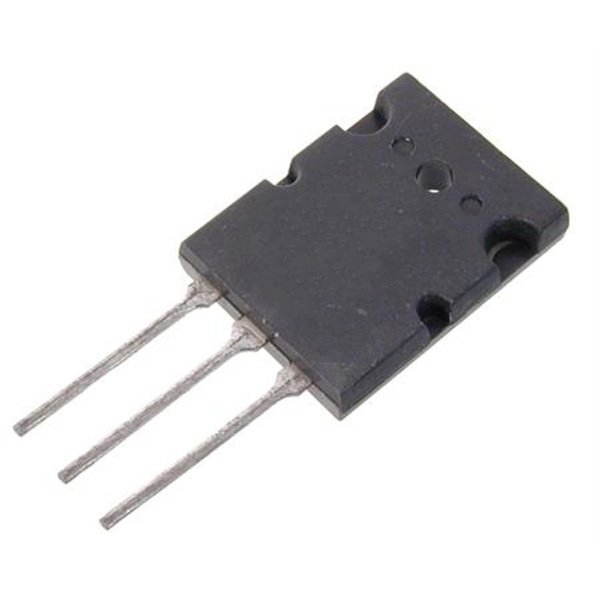

MJL4302AG TO-3PL 15A 350V PNP BIPOLAR TRANSISTOR
MJL4302AG
Type Designator: MJL4302AG
SMD Transistor Code: MJL4302A
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 230 W
Maximum Collector-Base Voltage |Vcb|: 350 V
Maximum Collector-Emitter Voltage |Vce|: 350 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 35 MHz
Collector Capacitance (Cc): 600 pF
Forward Current Transfer Ratio (hFE), MIN: 80
Noise Figure, dB: -
