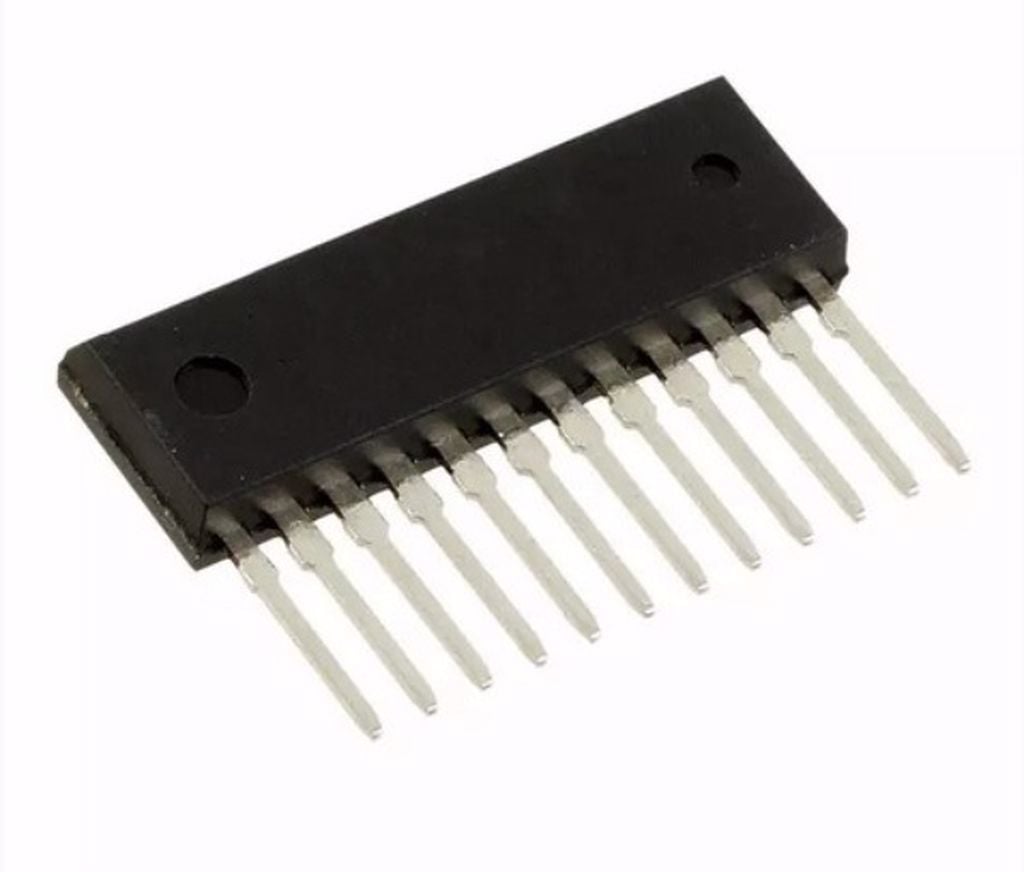

MP4513 SIP-12 100V 5A N-CHANNEL POWER TRANSISTOR
MP4513
Type Designator: MP4513
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 3 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 10 MHz
Collector Capacitance (Cc): 40 pF
Forward Current Transfer Ratio (hFE), MIN: 1000
Package: 2-32B1A
