MPS2369A

Type Designator: MPS2369A

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.625 W

Maximum Collector-Base Voltage |Vcb|: 40 V

Maximum Collector-Emitter Voltage |Vce|: 15 V

Maximum Emitter-Base Voltage |Veb|: 4.5 V

Maximum Collector Current |Ic max|: 0.2 A

Max. Operating Junction Temperature (Tj): 150 °C

Collector Capacitance (Cc): 4 pF

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

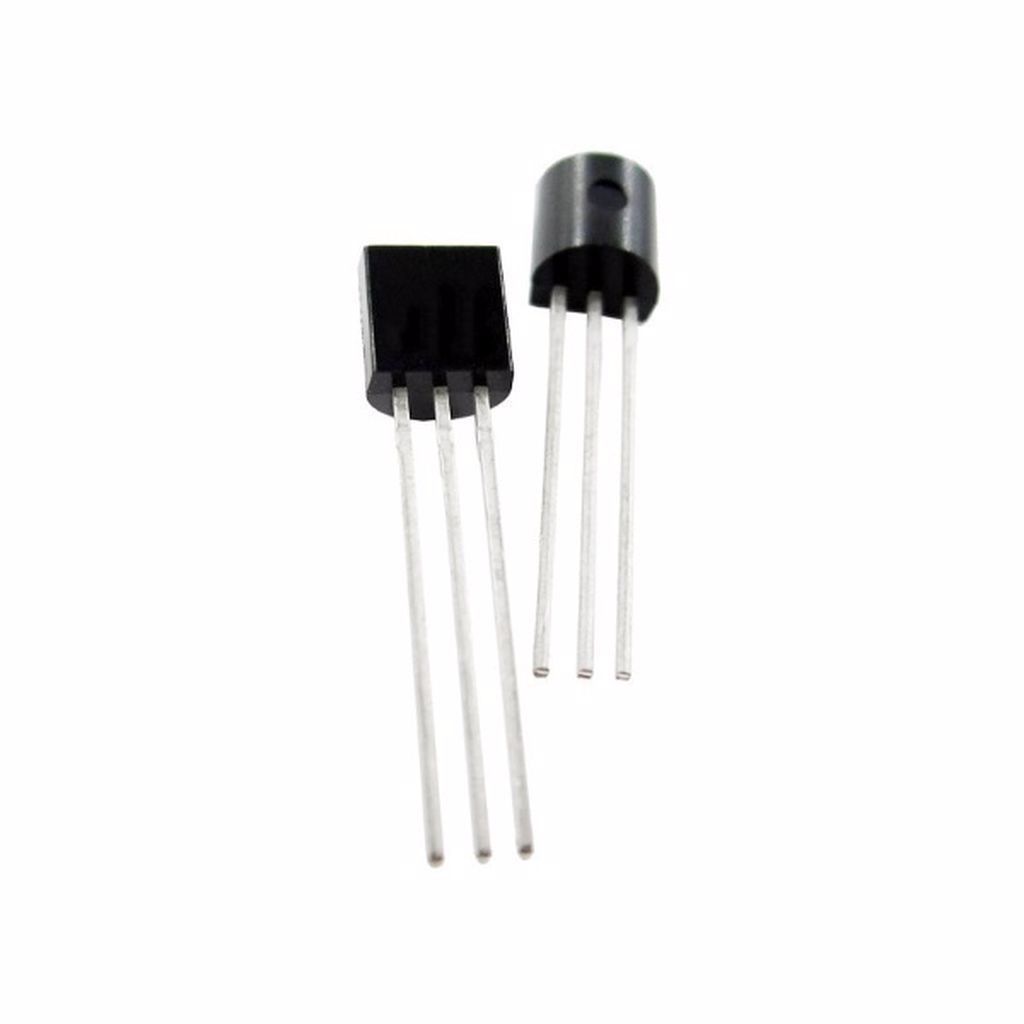

Package: TO92
