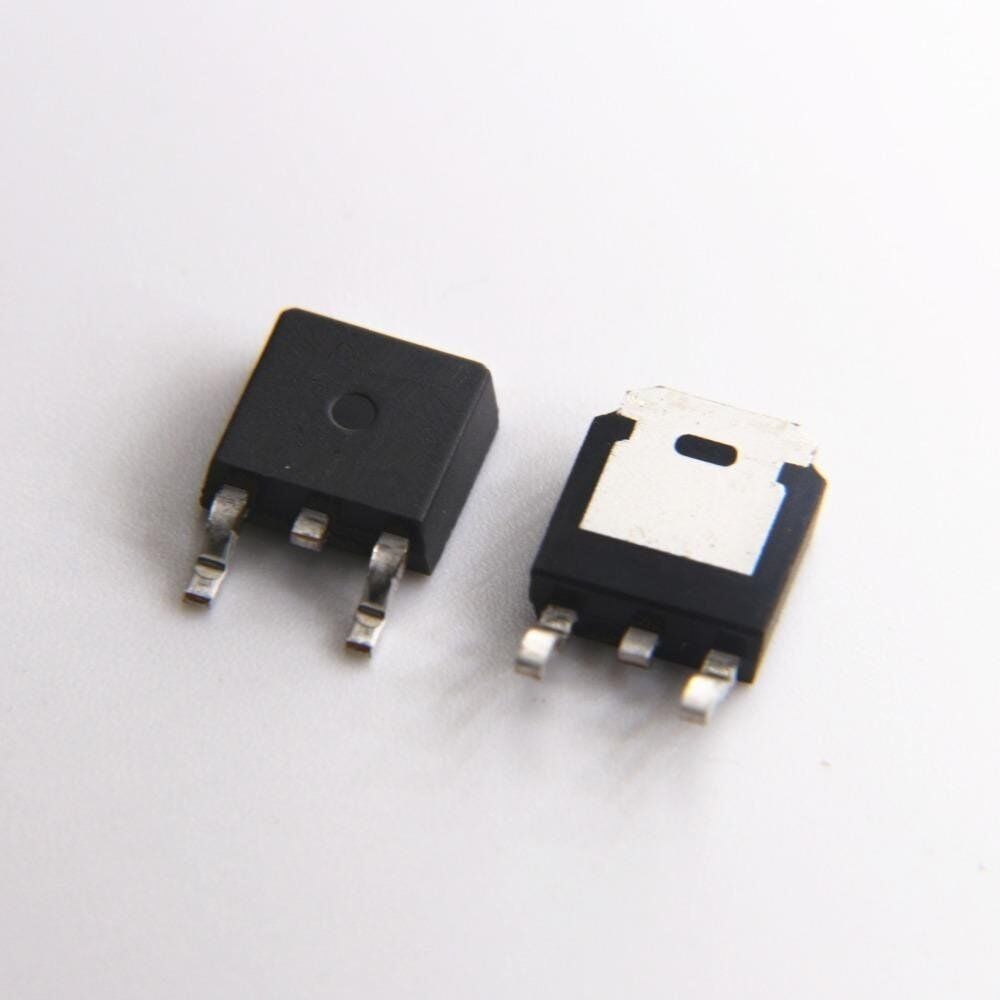

NCE60P82AK TO-252 82A 60V P-CHANNEL MOSFET TRANSISTOR
₺67,58 + KDV
23 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR23933
Fiyat
67,58 TL + KDV
*7,54 TL den başlayan taksitlerle!
NCE60P82AK TO-252 82A 60V P-CHANNEL MOSFET TRANSISTOR
Type of Transistor: MOSFET
Type of Control Channel: P-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 150 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 82 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 2.4 V
Qg ⓘ - Total Gate Charge: 62.1 nC
tr ⓘ - Rise Time: 20 nS
Cossⓘ - Output Capacitance: 356 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.016 Ohm
Package: TO-252
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
NCE60P82AK TO-252 82A 60V P-CHANNEL MOSFET TRANSISTOR
Type of Transistor: MOSFET
Type of Control Channel: P-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 150 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 82 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 2.4 V
Qg ⓘ - Total Gate Charge: 62.1 nC
tr ⓘ - Rise Time: 20 nS
Cossⓘ - Output Capacitance: 356 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.016 Ohm
Package: TO-252
