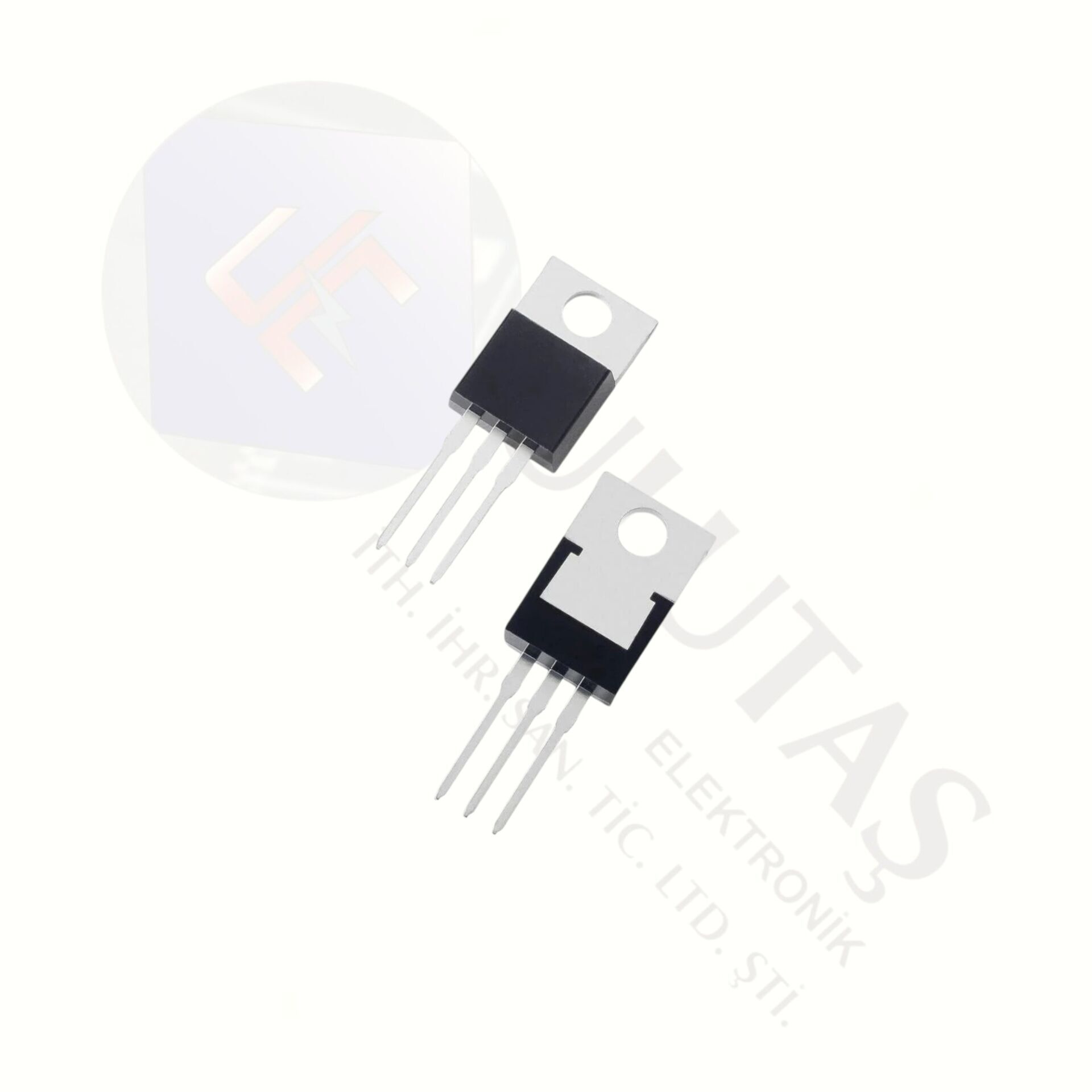

NCE65T260 TO-220 15A-650V 131W 0.26 OHM N-Channel Mosfet
₺126,14 + KDV
50 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR0005555
Fiyat
126,14 TL + KDV
*14,07 TL den başlayan taksitlerle!
NCE65T260 TO-220 15A-650V 131W 0.26 OHM N-Channel Mosfet
Type of Transistor: MOSFET
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 131 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 15 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 8 nS
Cossⓘ - Output Capacitance: 74 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.26 Ohm
Package: TO220
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
NCE65T260 TO-220 15A-650V 131W 0.26 OHM N-Channel Mosfet
Type of Transistor: MOSFET
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 131 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 15 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 8 nS
Cossⓘ - Output Capacitance: 74 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.26 Ohm
Package: TO220
