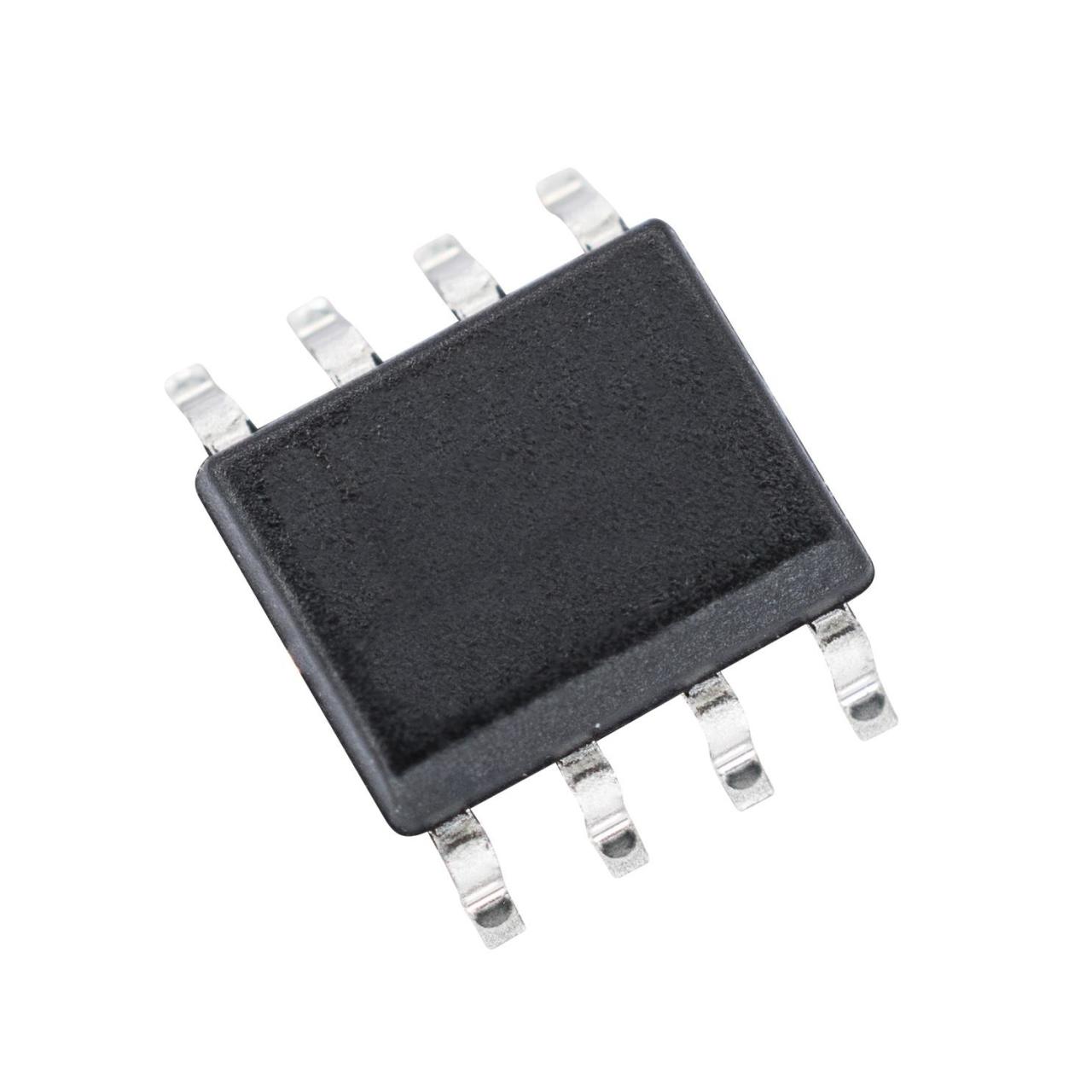

P2503 - (PS2503NVG) SOIC-8 N&P MOSFET TRANSİSTÖR
P2503HVG
Type Designator: P2503HVG
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 7 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 11 nC
Rise Time (tr): 9 nS
Drain-Source Capacitance (Cd): 108 pF
Maximum Drain-Source On-State Resistance (Rds): 0.025 Ohm
Package: SOP8
Ürün Bilgisi
P2503HVG
Type Designator: P2503HVG
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 7 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 11 nC
Rise Time (tr): 9 nS
Drain-Source Capacitance (Cd): 108 pF
Maximum Drain-Source On-State Resistance (Rds): 0.025 Ohm
Package: SOP8
