P2504EDG - (PS2504EDG) TO-252 40V 18A P-CHANNEL MOSFET TRANSISTOR
P2504EDG
Type Designator: P2504EDG
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 42 W
Maximum Drain-Source Voltage |Vds|: 40 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 18 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 29 nC
Rise Time (tr): 29 nS
Drain-Source Capacitance (Cd): 320 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0258 Ohm

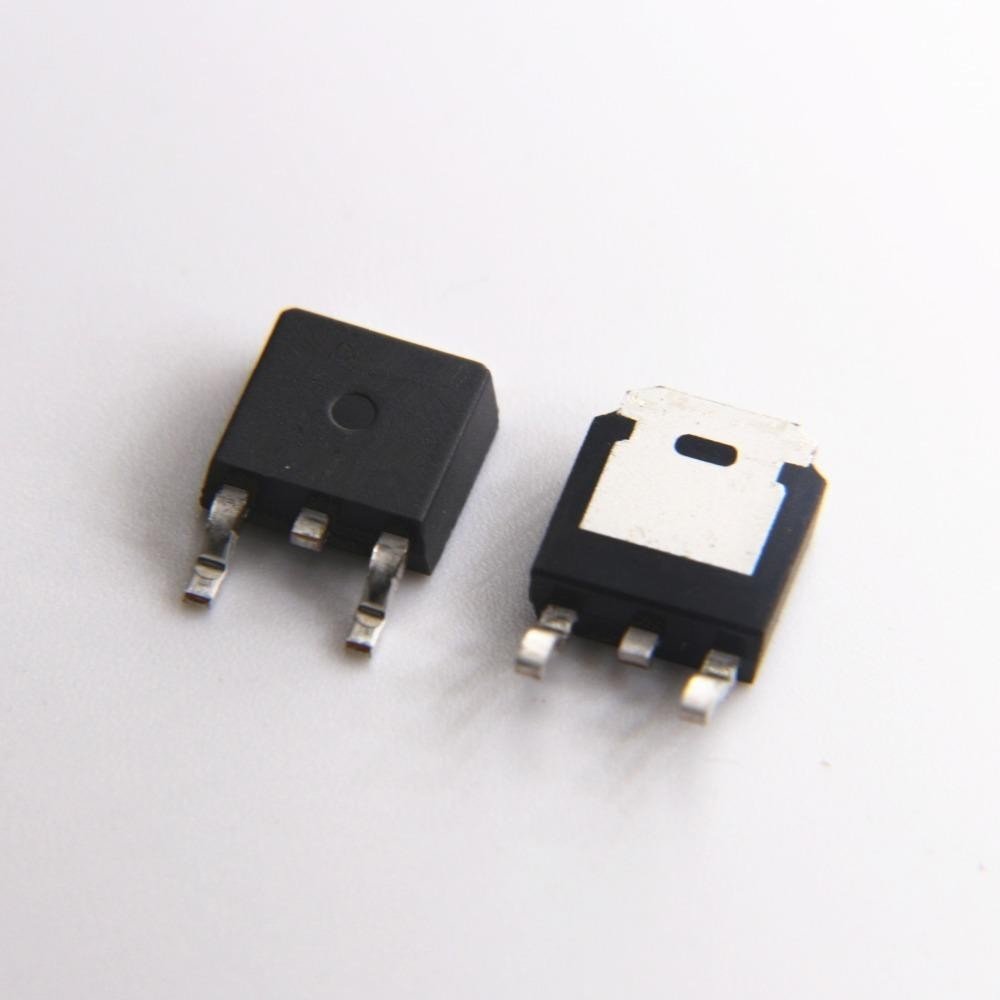

Package: TO252
Ürün Bilgisi
P2504EDG
Type Designator: P2504EDG
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 42 W
Maximum Drain-Source Voltage |Vds|: 40 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 18 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 29 nC
Rise Time (tr): 29 nS
Drain-Source Capacitance (Cd): 320 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0258 Ohm
Package: TO252
