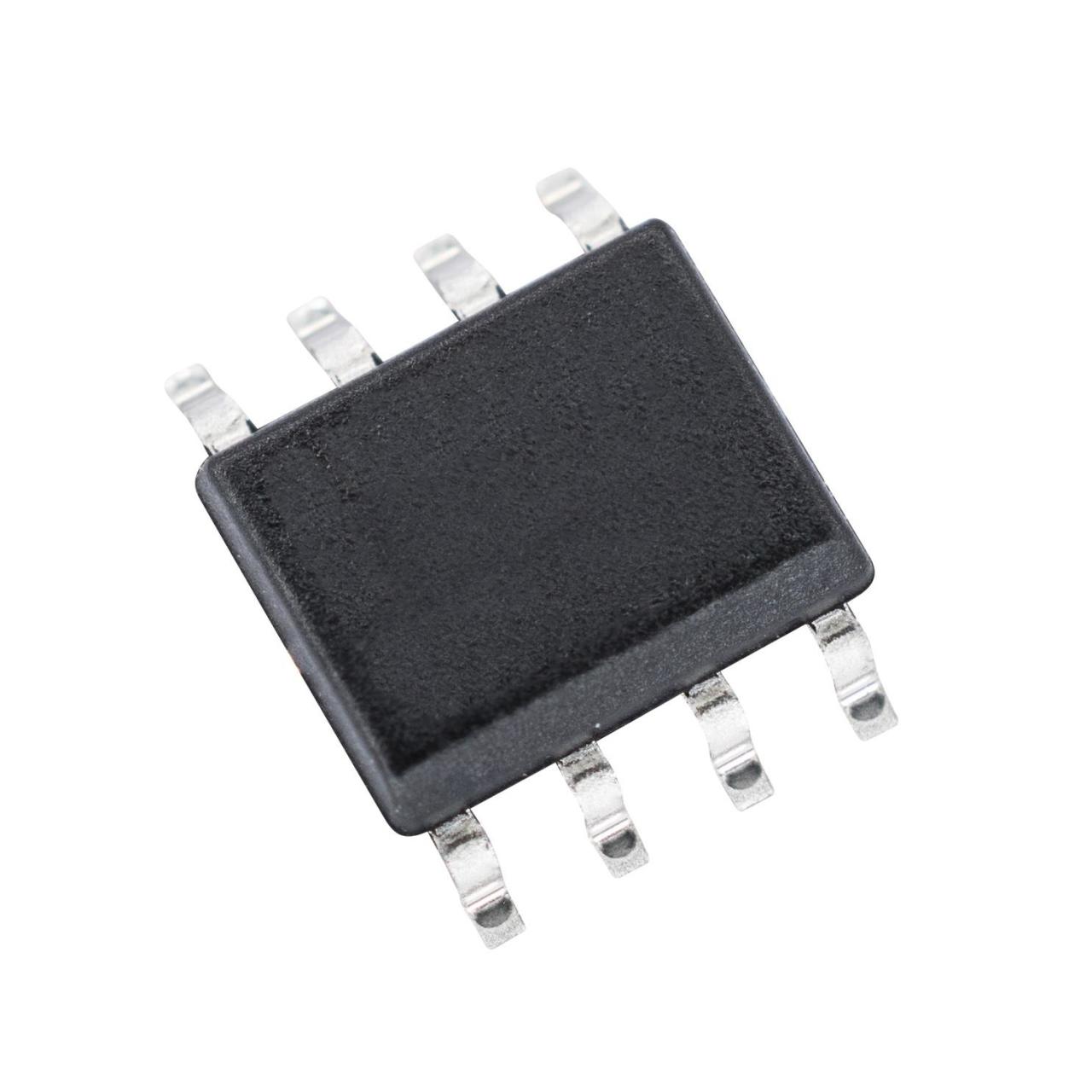

PS2803NVG - (P2803NVG) SOIC-8 30V 7A 2W P-CHANNEL MOSFET TRANSISTOR
P2803NVG
Type Designator: P2803NVG
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 7 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 14 nC
Rise Time (tr): 4 nS
Drain-Source Capacitance (Cd): 105 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0275 Ohm
Package: SOP8
