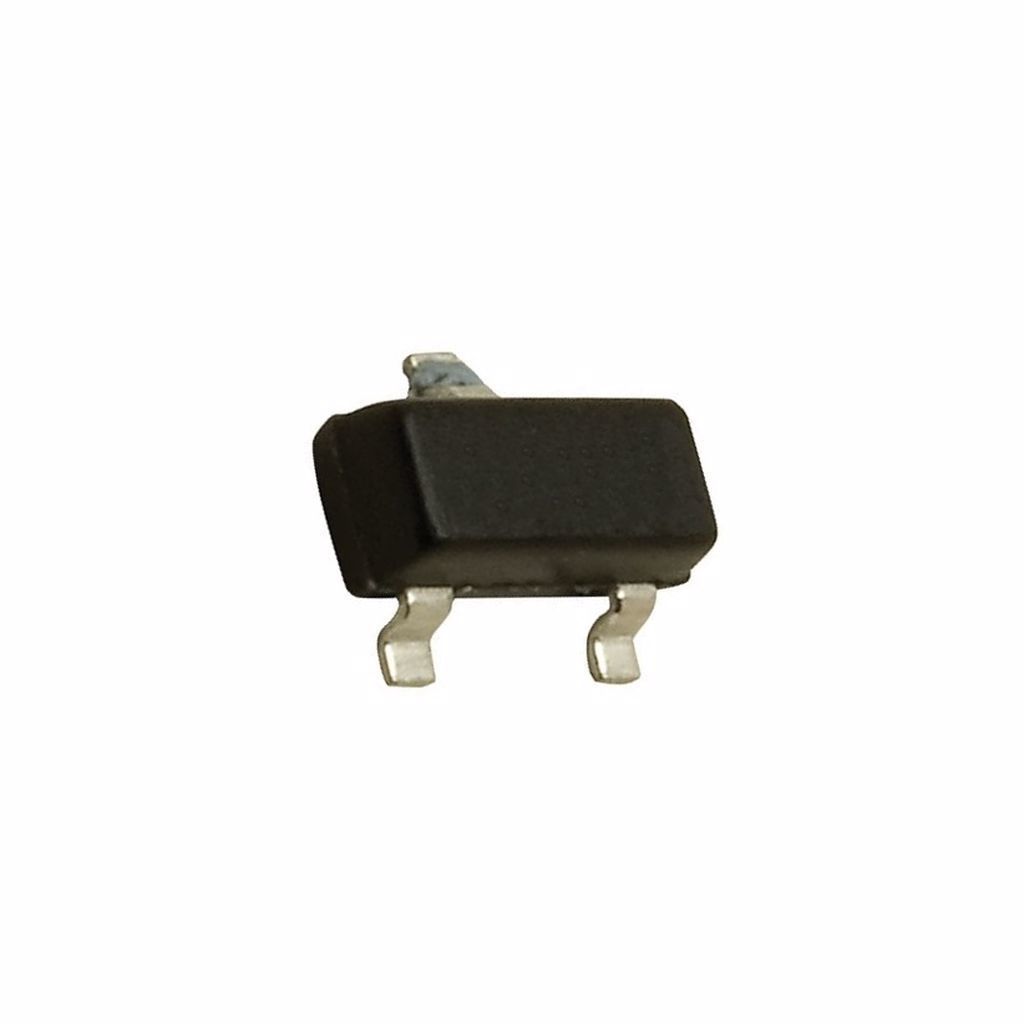

PDTC114ET - (W16) SOT-23 100mA 50V NPN BIPOLAR TRANSISTOR
PDTC114ET
Type Designator: PDTC114ET
SMD Transistor Code: p16_t16_W16
Material of Transistor: Si
Polarity: Pre-Biased-NPN
Built in Bias Resistor R1 = 10 kOhm
Built in Bias Resistor R2 = 10 kOhm
Typical Resistor Ratio R1/R2 = 1
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 2.5 pF
Forward Current Transfer Ratio (hFE), MIN: 30
Package: SOT23
Ürün Bilgisi
PDTC114ET
Type Designator: PDTC114ET
SMD Transistor Code: p16_t16_W16
Material of Transistor: Si
Polarity: Pre-Biased-NPN
Built in Bias Resistor R1 = 10 kOhm
Built in Bias Resistor R2 = 10 kOhm
Typical Resistor Ratio R1/R2 = 1
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 2.5 pF
Forward Current Transfer Ratio (hFE), MIN: 30
Package: SOT23
