PF610BL SOT-223 0.9A 100V N-CHANNEL MOSFET TRANSISTOR
PF610BL
Type Designator: PF610BL
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.3 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 0.9 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 7.2 nC
Rise Time (tr): 11 nS
Drain-Source Capacitance (Cd): 65 pF
Maximum Drain-Source On-State Resistance (Rds): 0.7 Ohm

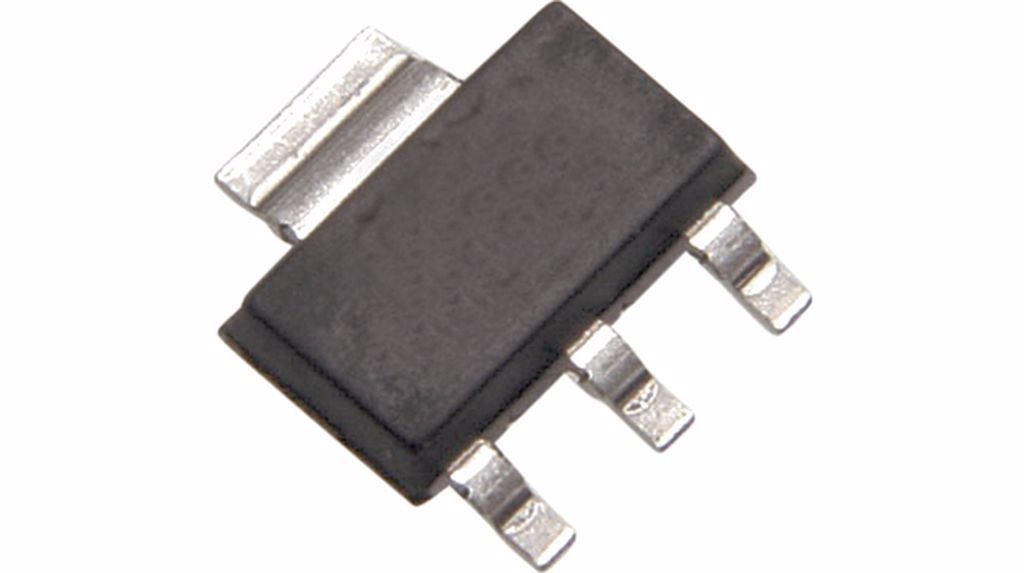

Package: SOT223
Ürün Bilgisi
PF610BL
Type Designator: PF610BL
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.3 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 0.9 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 7.2 nC
Rise Time (tr): 11 nS
Drain-Source Capacitance (Cd): 65 pF
Maximum Drain-Source On-State Resistance (Rds): 0.7 Ohm
Package: SOT223
