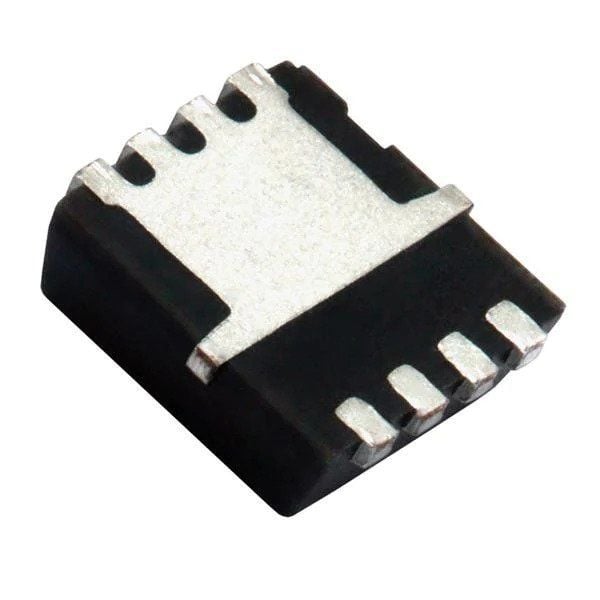

SI7489DP-T1-E3 POWERPAKSO-8 100V 28A 41M OHMS 83W PNP MOSFET
₺173,46 + KDV
10 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR0280
Fiyat
173,46 TL + KDV
*19,35 TL den başlayan taksitlerle!
SI7489DP-T1-E3 POWERPAKSO-8 100V 28A 41M OHMS 83W PNP MOSFET
Product Attribute Attribute Value Select Attribute Manufacturer: Vishay Product Category: MOSFETs RoHS: Technology: Si Mounting Style: SMD/SMT Package/Case: PowerPAK-SO-8 Transistor Polarity: P-Channel Number of Channels: 1 Channel Vds - Drain-Source Breakdown Voltage: 100 V Id - Continuous Drain Current: 28 A Rds On - Drain-Source Resistance: 41 mOhms Vgs - Gate-Source Voltage: - 20 V, + 20 V Vgs th - Gate-Source Threshold Voltage: 1 V Qg - Gate Charge: 106 nC Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Pd - Power Dissipation: 83 W Channel Mode: Enhancement
Product Attribute Attribute Value Select Attribute Manufacturer: Vishay Product Category: MOSFETs RoHS: Technology: Si Mounting Style: SMD/SMT Package/Case: PowerPAK-SO-8 Transistor Polarity: P-Channel Number of Channels: 1 Channel Vds - Drain-Source Breakdown Voltage: 100 V Id - Continuous Drain Current: 28 A Rds On - Drain-Source Resistance: 41 mOhms Vgs - Gate-Source Voltage: - 20 V, + 20 V Vgs th - Gate-Source Threshold Voltage: 1 V Qg - Gate Charge: 106 nC Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Pd - Power Dissipation: 83 W Channel Mode: Enhancement
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
SI7489DP-T1-E3 POWERPAKSO-8 100V 28A 41M OHMS 83W PNP MOSFET
Product Attribute Attribute Value Select Attribute Manufacturer: Vishay Product Category: MOSFETs RoHS: Technology: Si Mounting Style: SMD/SMT Package/Case: PowerPAK-SO-8 Transistor Polarity: P-Channel Number of Channels: 1 Channel Vds - Drain-Source Breakdown Voltage: 100 V Id - Continuous Drain Current: 28 A Rds On - Drain-Source Resistance: 41 mOhms Vgs - Gate-Source Voltage: - 20 V, + 20 V Vgs th - Gate-Source Threshold Voltage: 1 V Qg - Gate Charge: 106 nC Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Pd - Power Dissipation: 83 W Channel Mode: Enhancement
Product Attribute Attribute Value Select Attribute Manufacturer: Vishay Product Category: MOSFETs RoHS: Technology: Si Mounting Style: SMD/SMT Package/Case: PowerPAK-SO-8 Transistor Polarity: P-Channel Number of Channels: 1 Channel Vds - Drain-Source Breakdown Voltage: 100 V Id - Continuous Drain Current: 28 A Rds On - Drain-Source Resistance: 41 mOhms Vgs - Gate-Source Voltage: - 20 V, + 20 V Vgs th - Gate-Source Threshold Voltage: 1 V Qg - Gate Charge: 106 nC Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Pd - Power Dissipation: 83 W Channel Mode: Enhancement
SI7489DP-T1-E3 POWERPAKSO-8 100V 28A 41M OHMS 83W PNP MOSFET
