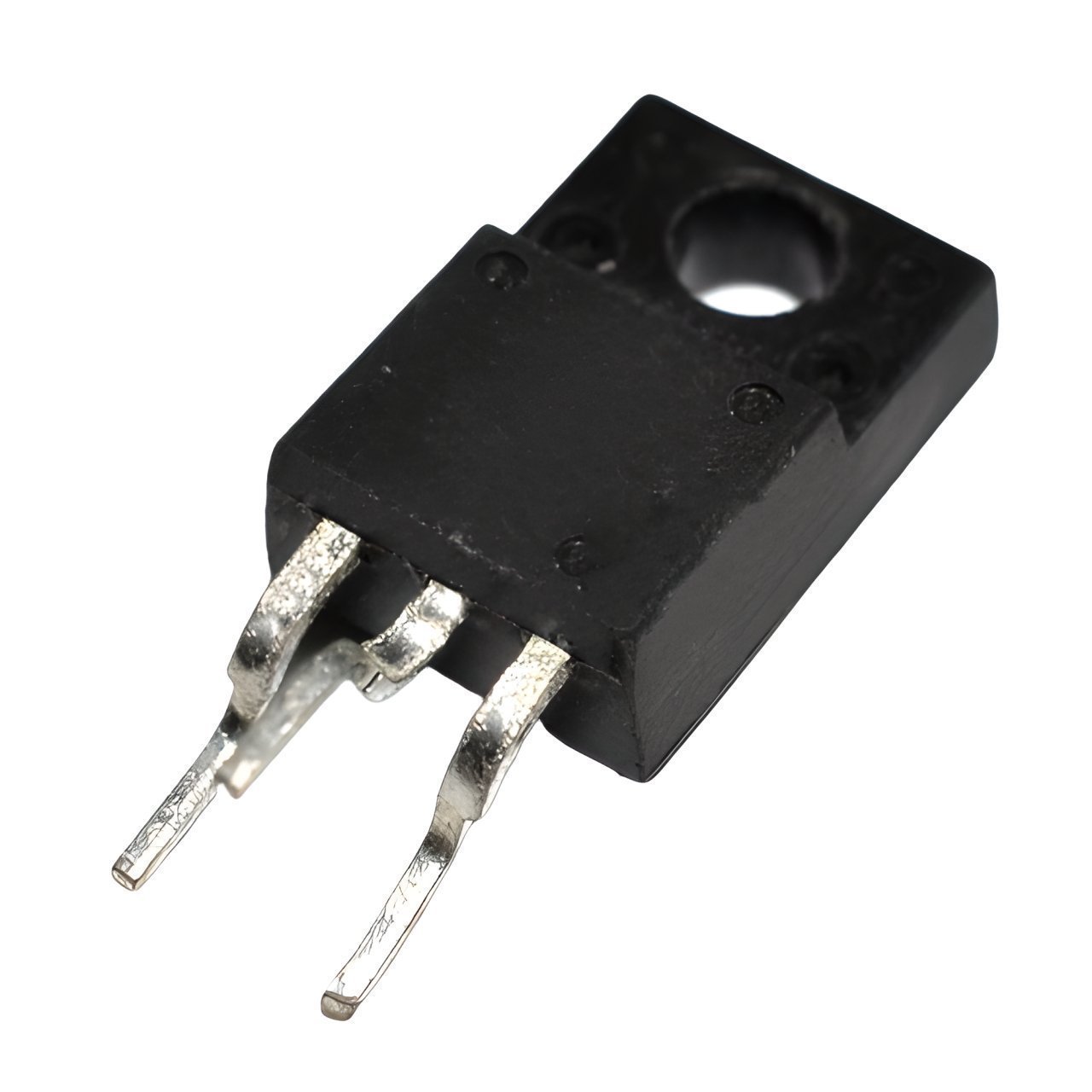

SPA03N60C3 TO-220F 3.2A 600V 29.7W 1.4Ω N-CHANNEL MOSFET
SPA03N60C3 MOSFET
Type Designator: SPA03N60C3
Marking Code: 03N60C3
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 29.7 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.9 V
Maximum Drain Current |Id|: 3.2 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 13 nC
Rise Time (tr): 3 nS
Drain-Source Capacitance (Cd): 150 pF
Maximum Drain-Source On-State Resistance (Rds): 1.4 Ohm
Package: TO220FP
Ürün Bilgisi
SPA03N60C3 MOSFET
Type Designator: SPA03N60C3
Marking Code: 03N60C3
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 29.7 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.9 V
Maximum Drain Current |Id|: 3.2 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 13 nC
Rise Time (tr): 3 nS
Drain-Source Capacitance (Cd): 150 pF
Maximum Drain-Source On-State Resistance (Rds): 1.4 Ohm
Package: TO220FP
