SQD15N06-42L - (G15N06) TO-252 15A 60V 37W 0.042OHM N-CHANNEL MOSFET
SQD15N06-42L MOSFET
Type Designator: SQD15N06-42L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 37 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 15 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 9.5 nC
Rise Time (tr): 10 nS
Drain-Source Capacitance (Cd): 95 pF
Maximum Drain-Source On-State Resistance (Rds): 0.042 Ohm

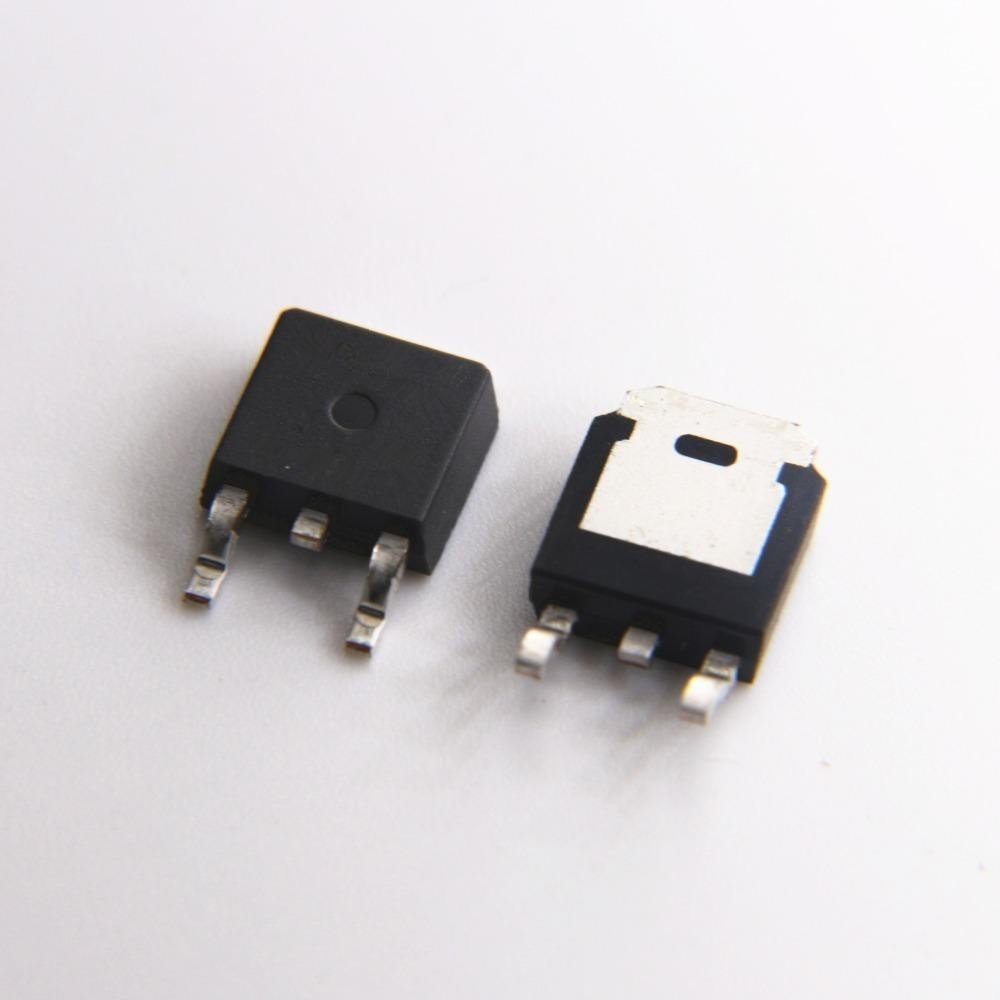

Package: TO-252
Ürün Bilgisi
SQD15N06-42L MOSFET
Type Designator: SQD15N06-42L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 37 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 15 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 9.5 nC
Rise Time (tr): 10 nS
Drain-Source Capacitance (Cd): 95 pF
Maximum Drain-Source On-State Resistance (Rds): 0.042 Ohm
Package: TO-252
