STB40NF10T4 TO-263 56A 100V 150W 0.028Ω N-CHANNEL MOSFET
STB40NF10T4 MOSFET
Type Designator: STB40NF10T4
Marking Code: B40NF10
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 50 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 60.6 nC
Rise Time (tr): 63 nS
Drain-Source Capacitance (Cd): 265 pF
Maximum Drain-Source On-State Resistance (Rds): 0.028 Ohm

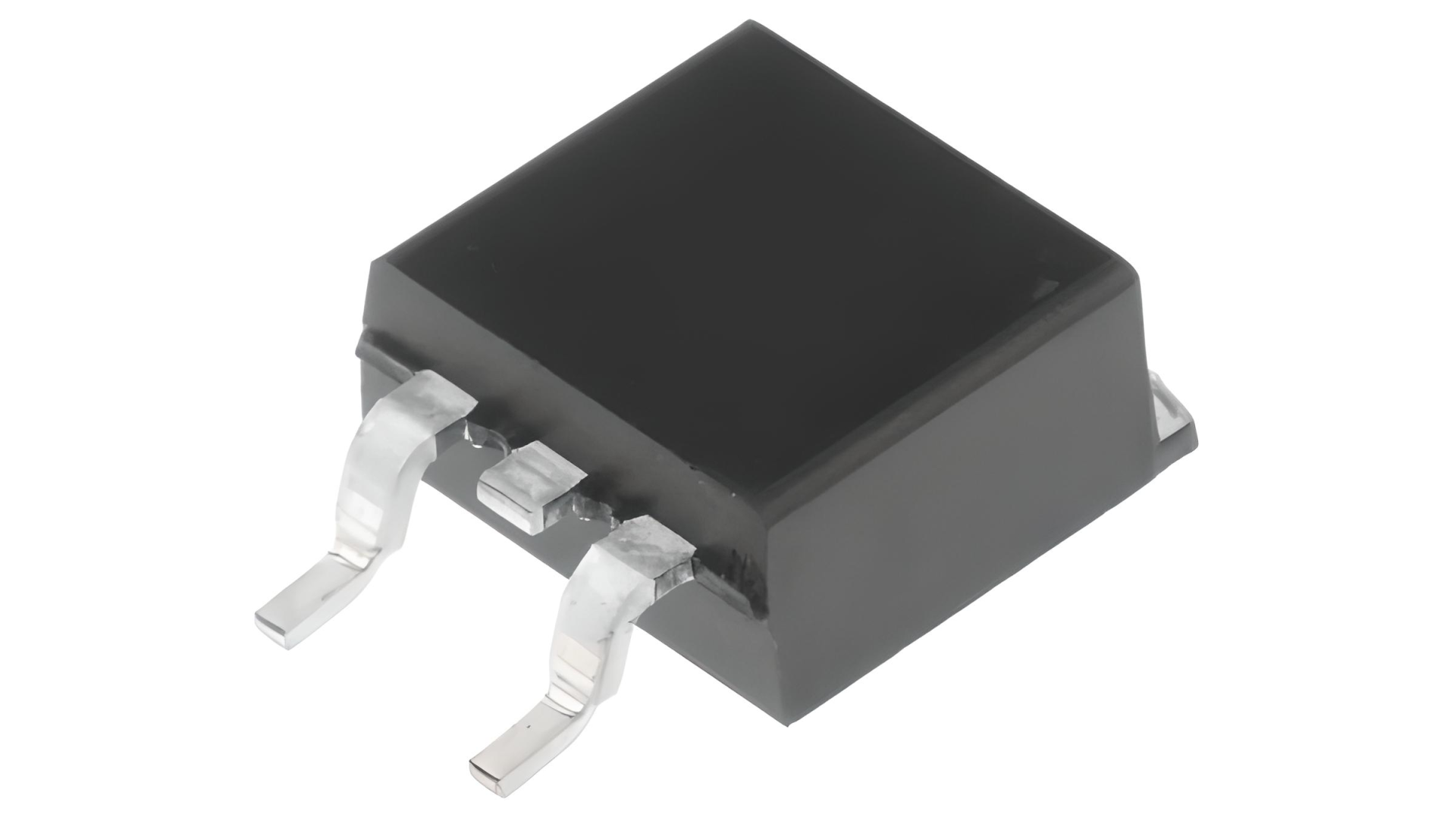

Package: D2PAK
Ürün Bilgisi
STB40NF10T4 MOSFET
Type Designator: STB40NF10T4
Marking Code: B40NF10
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 50 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 60.6 nC
Rise Time (tr): 63 nS
Drain-Source Capacitance (Cd): 265 pF
Maximum Drain-Source On-State Resistance (Rds): 0.028 Ohm
Package: D2PAK
