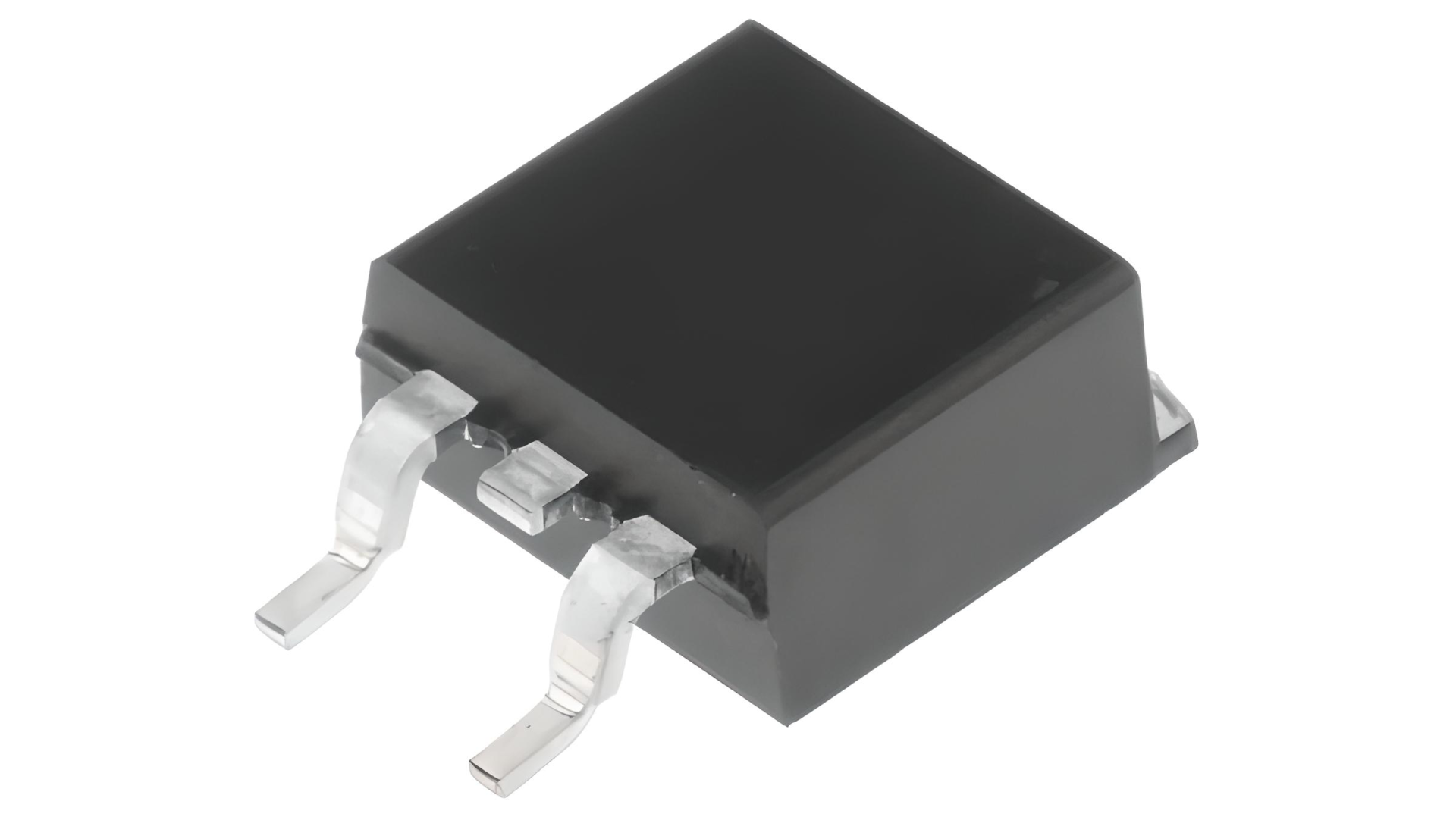

STB80NF03L-04T4 TO-263 80A 30V 300W 0.004Ω N-CHANNEL MOSFET
STB80NF03L-04T4 MOSFET
Type Designator: STB80NF03L-04T4
Marking Code: 80NF03L-04
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 300 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1 V
Maximum Drain Current |Id|: 80 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 85 nC
Rise Time (tr): 270 nS
Drain-Source Capacitance (Cd): 1670 pF
Maximum Drain-Source On-State Resistance (Rds): 0.004 Ohm
Package: D2PAK
Ürün Bilgisi
STB80NF03L-04T4 MOSFET
Type Designator: STB80NF03L-04T4
Marking Code: 80NF03L-04
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 300 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1 V
Maximum Drain Current |Id|: 80 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 85 nC
Rise Time (tr): 270 nS
Drain-Source Capacitance (Cd): 1670 pF
Maximum Drain-Source On-State Resistance (Rds): 0.004 Ohm
Package: D2PAK
