IRFZ24NS TO-263 17A 55V 45W 0.07Ω N-CHANNEL MOSFET
IRFZ24NS MOSFET
Type Designator: IRFZ24NS
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 45 W
Maximum Drain-Source Voltage |Vds|: 55 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 17 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 20(max) nC
Rise Time (tr): 34 nS
Drain-Source Capacitance (Cd): 140 pF
Maximum Drain-Source On-State Resistance (Rds): 0.07 Ohm

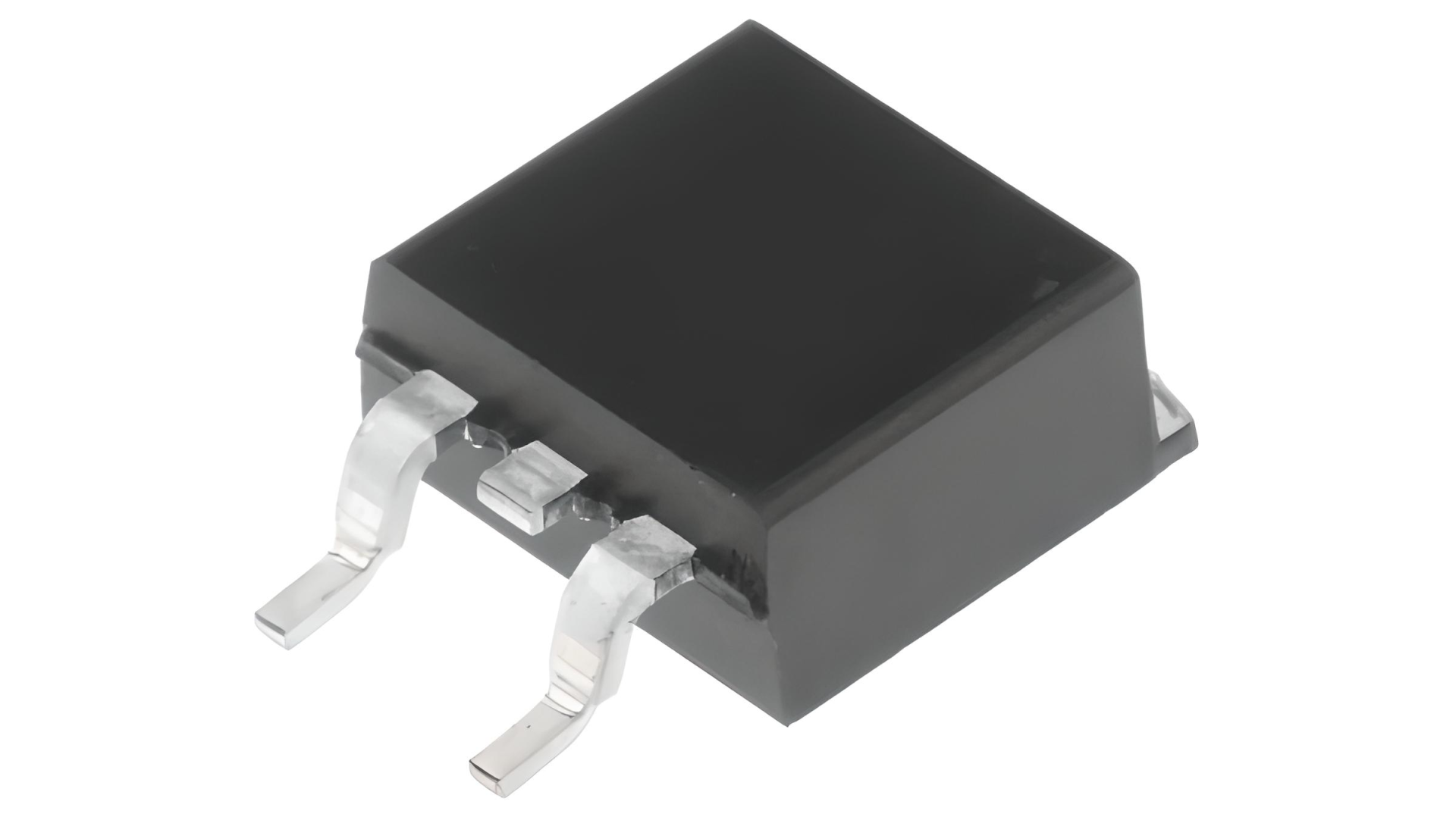

Package: TO263
Ürün Bilgisi
IRFZ24NS MOSFET
Type Designator: IRFZ24NS
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 45 W
Maximum Drain-Source Voltage |Vds|: 55 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 17 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 20(max) nC
Rise Time (tr): 34 nS
Drain-Source Capacitance (Cd): 140 pF
Maximum Drain-Source On-State Resistance (Rds): 0.07 Ohm
Package: TO263
