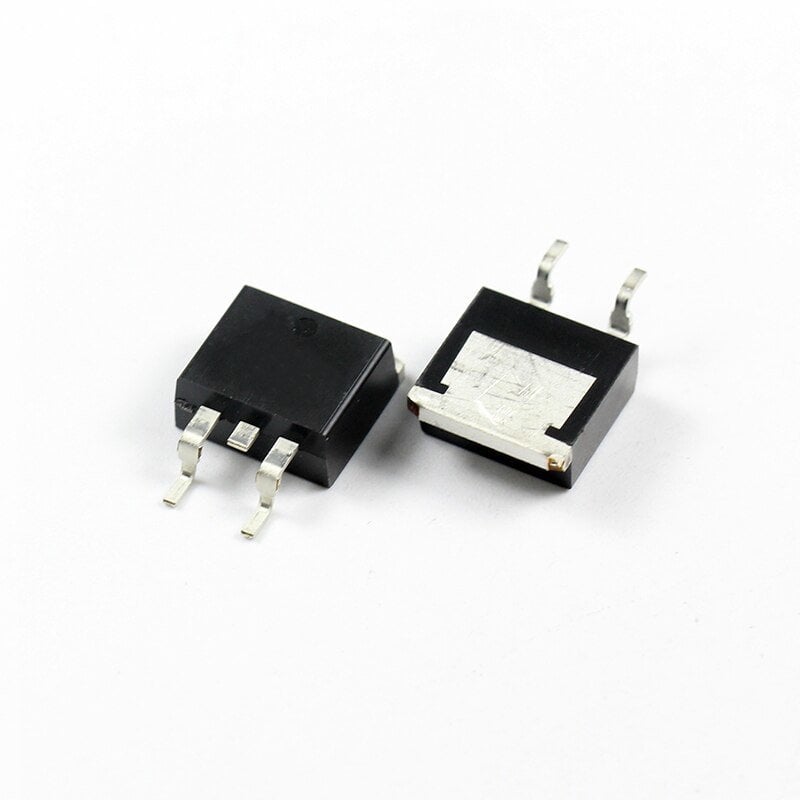

STB80NF10T4 TO-263 80A 100V 300W 0.015Ω N-CHANNEL MOSFET
STB80NF10T4 MOSFET
Type Designator: STB80NF10T4
Marking Code: B80NF10
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 300 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 80 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 135 nC
Rise Time (tr): 80 nS
Drain-Source Capacitance (Cd): 700 pF
Maximum Drain-Source On-State Resistance (Rds): 0.015 Ohm
Package: D2PAK
Ürün Bilgisi
STB80NF10T4 MOSFET
Type Designator: STB80NF10T4
Marking Code: B80NF10
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 300 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 80 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 135 nC
Rise Time (tr): 80 nS
Drain-Source Capacitance (Cd): 700 pF
Maximum Drain-Source On-State Resistance (Rds): 0.015 Ohm
Package: D2PAK
