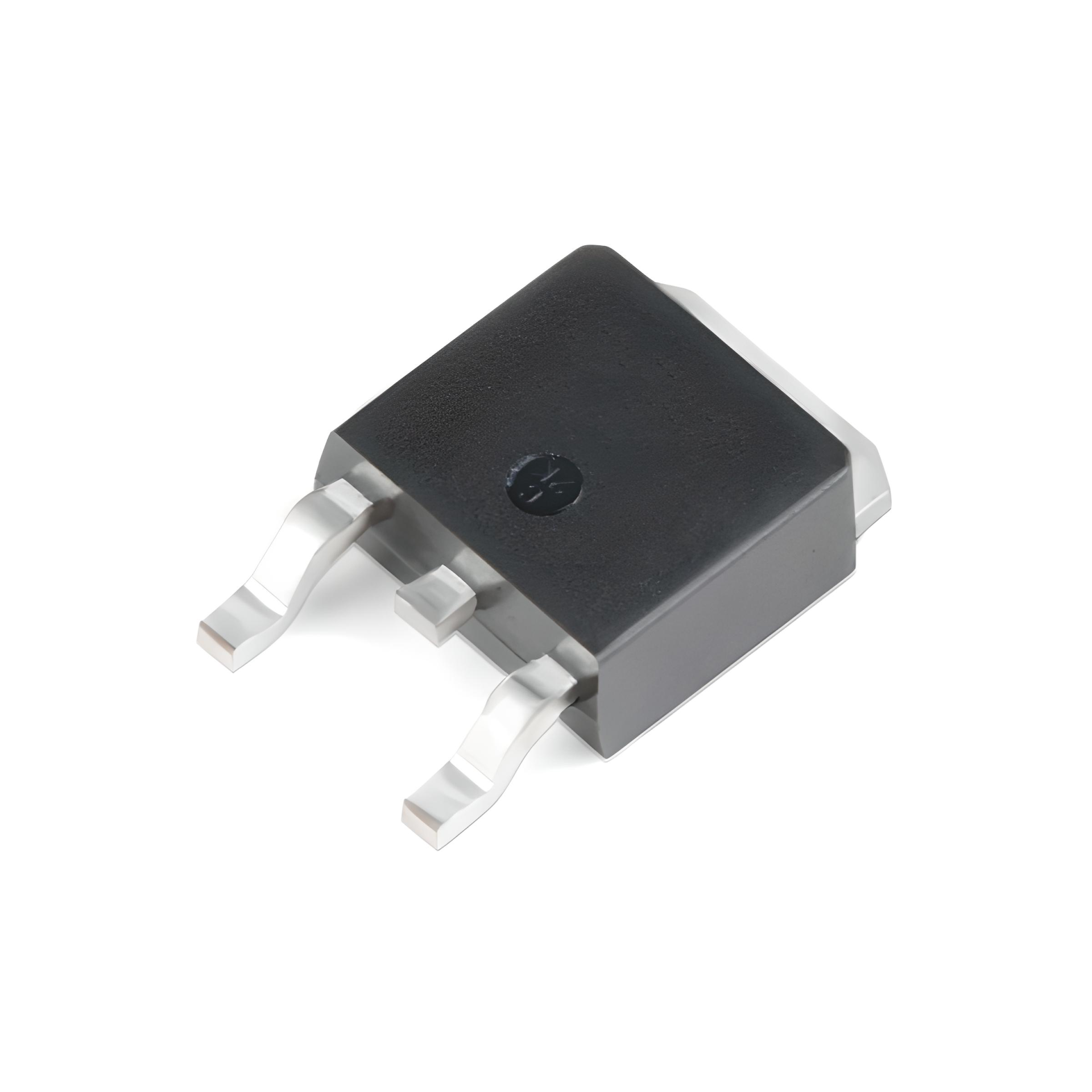

STD12N06 - (D12N06) TO-252 12A 60V 45W 0.15Ω N-CHANNEL MOSFET
STD12N06 MOSFET
Type Designator: STD12N06
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 45 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 12 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 15 nC
Rise Time (tr): 80 nS
Drain-Source Capacitance (Cd): 150 pF
Maximum Drain-Source On-State Resistance (Rds): 0.15 Ohm
Package: DPAK
Ürün Bilgisi
STD12N06 MOSFET
Type Designator: STD12N06
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 45 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 12 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 15 nC
Rise Time (tr): 80 nS
Drain-Source Capacitance (Cd): 150 pF
Maximum Drain-Source On-State Resistance (Rds): 0.15 Ohm
Package: DPAK
